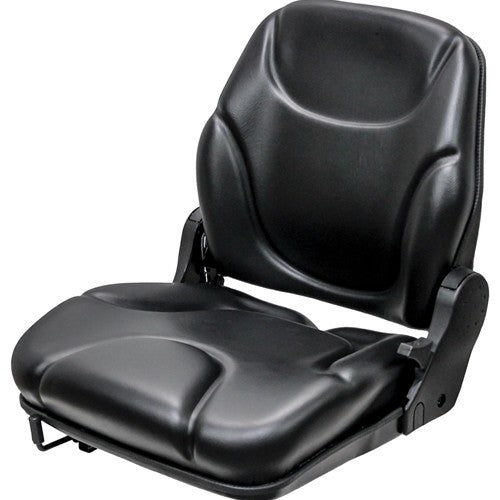

John Deere Aftermarket Seat Assembly For Tractors

*Will Not Fit If Original Seat Was A Grammer DS44*

*Will Not Fit If Original Seat Has An Integrated Swivel*

*Please Verify All Measurements And Model Numbers (The WHOLE Model Number). In Some Cases, Particular Machines Have Multiple Options. It Is Up To You To Decide For Sure If This Item Fits Your Machine. If You Need Help, Please Call Or Email Us.*

Features:

• Heavy-duty Black Vinyl covering
• Vacuum formed with ergonomic polyurethane cushions
• Vinyl is water-resistant
• Adjustable backrest folds forward and reclines from 30° - 85°
• Adjustable black Dura-Tex armrests fold up and out of the way allowing for easy access to the seat and offers individual comfort
• Adjustable slide rails with fore/aft adjustment minimum of 9.84"
• Accepts flange bolt mount operator presence switch

Available Options:

• Seat Belt Bracket Necessary with Part Number 7911 (PN: 6002)
• Lap Belt Kit (PN: 7911)
• Operator Presence Switch - Normally Open (PN: 8665)

Available Maintenance Item:

• Replacement Backrest Extension in Black Vinyl (PN: 8785)
• Replacement Armrest Kit (PN: 8784)

Fits John Deere® Tractors (With Original Grammer Seat And MSG83 Mechanical Or MSG93 Air Suspension): 5083E, 5085E, 5093E, 5101E, 5220, 5225, 5320, 5325, 5420, 5425, 5520, 5525, 5603, 5625, 6110, 6110L, 6120, 6120L, 6200, 6200L, 6210, 6210L, 6215, 6220, 6220L, 6230, 6300, 6300L, 6310, 6310L, 6320, 6330, 6400, 6400L, 6403, 6405, 6410, 6410L, 6415, 6420, 6430, 6500, 6500L, 6510L, 6603, 6605, 6615, 6715, 7130, 7230, 7330
