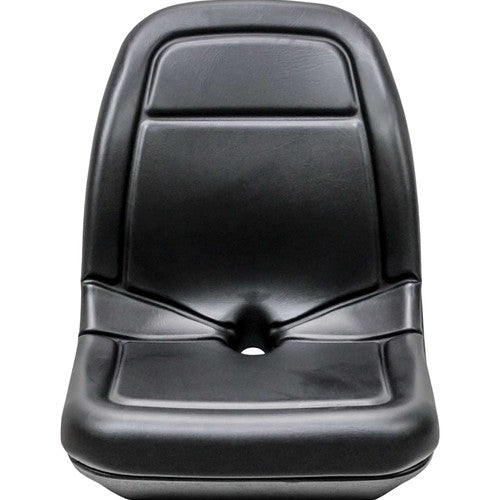

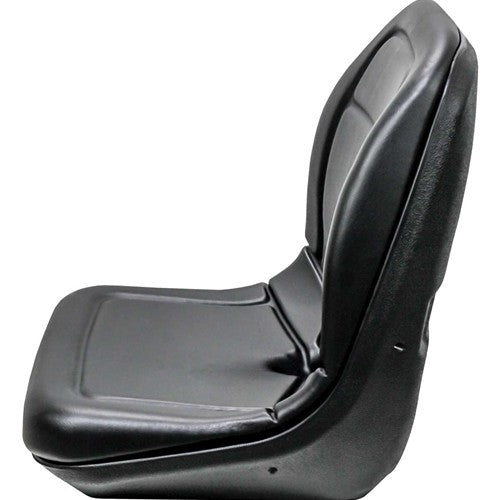

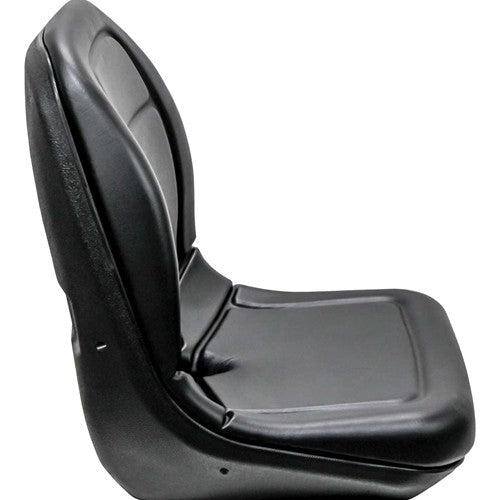

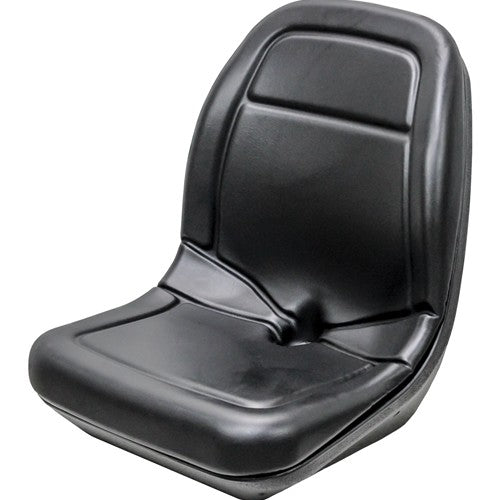

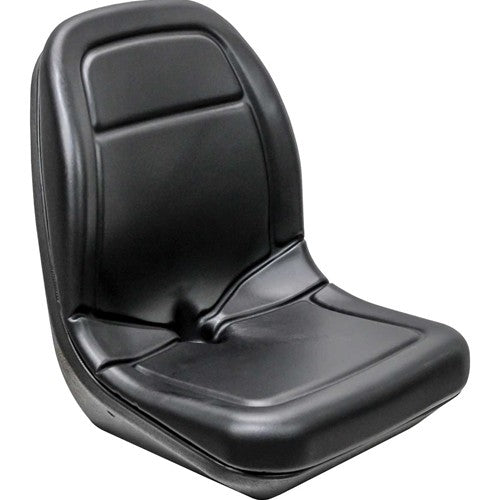

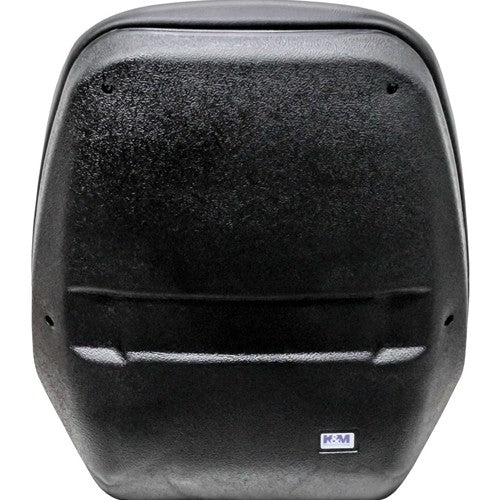

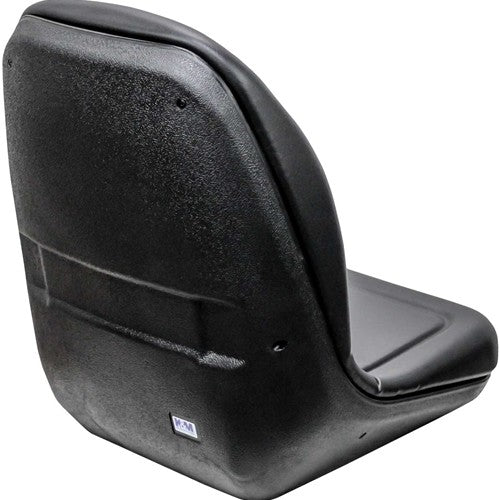

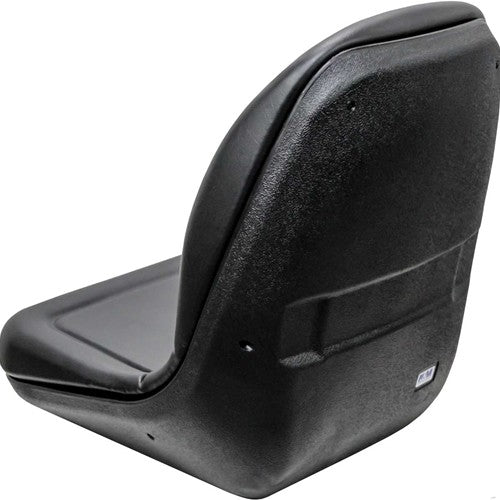

John Deere Aftermarket Bucket Seat For Skid Steers
*Will Only Fit The Models Listed If The Original Seat Did Not Have A Suspension*
*This Seat Takes The Twist In Mount Operator Presence Switch. Please Verify That Your Original Operator Presence Switch Is Twist In Mount. If It Is Not, You Will Need To Buy The Operator Presence Switch Separately*
*Please Verify All Measurements And Model Numbers (The WHOLE Model Number). In Some Cases, Particular Machines Have Multiple Options. It Is Up To You To Decide For Sure If This Item Fits Your Machine. If You Need Help, Please Call Or Email Us.*
Features:
Durable vinyl covering
Rugged blow molded plastic bucket frame is corrosion resistant
Ergonomical foam cushion for operator comfort
Vacuum formed waterproof vinyl
Central drain hole prevents water build-up

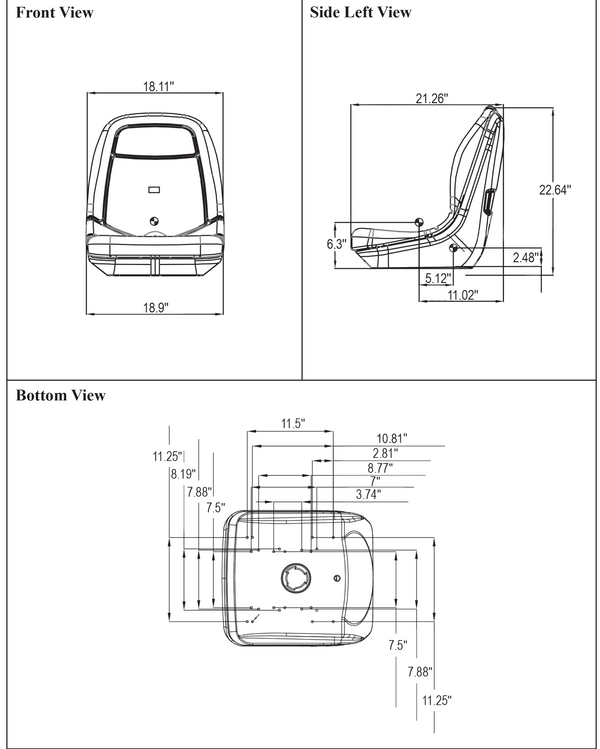

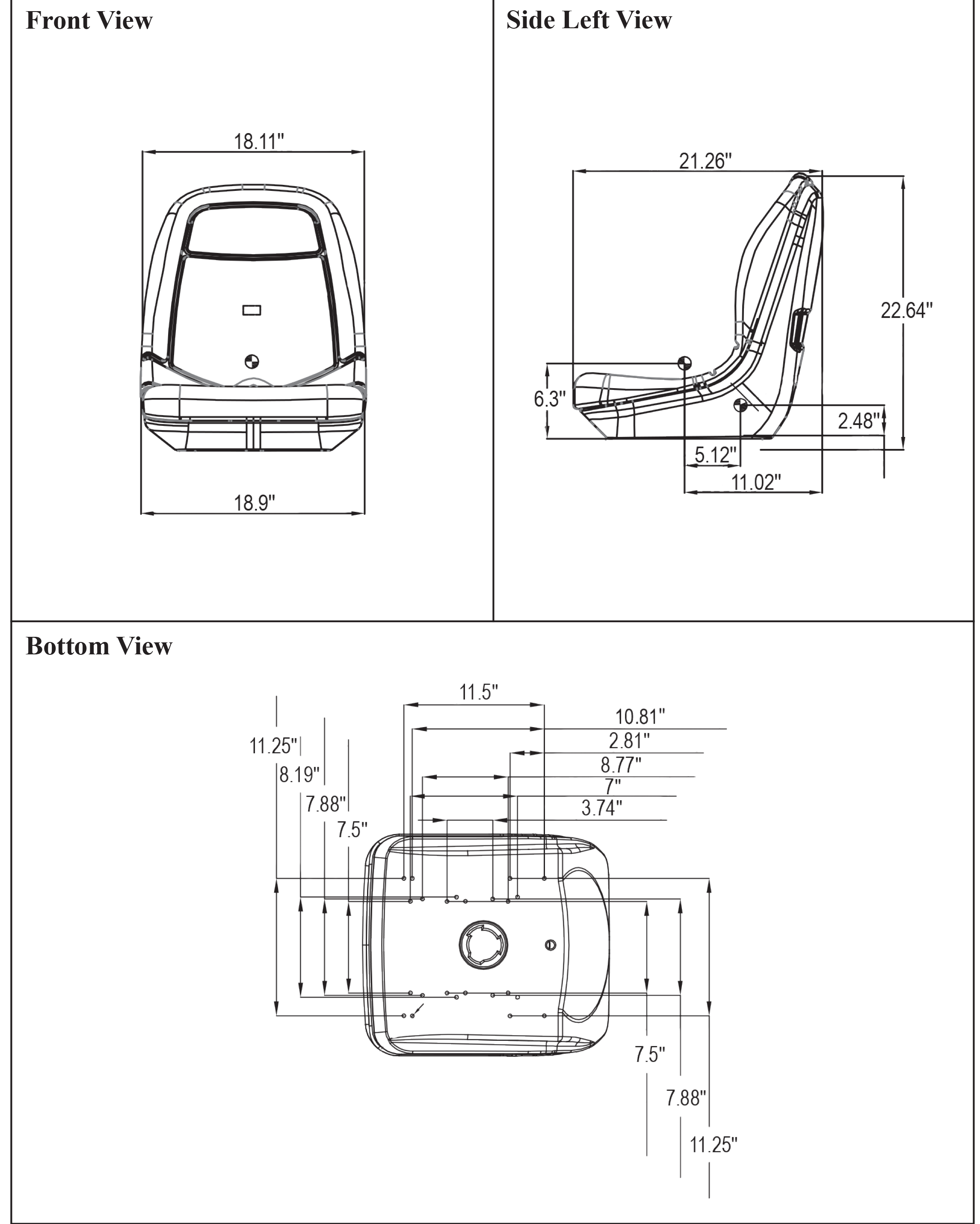

Seat dimensions: 18.9" x 22.64" (W x H)
Multiple mounting patterns
Uses standard 5/16 18UNC bolts

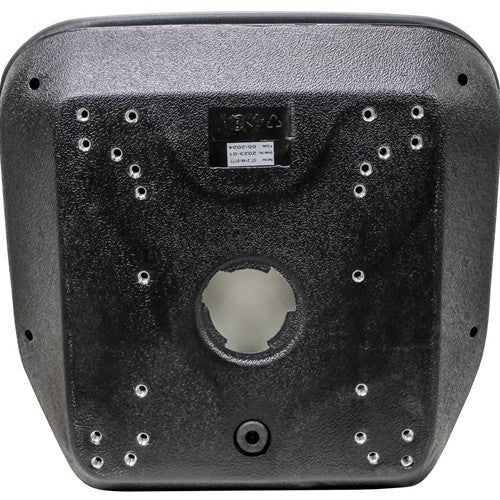

Mounting Patterns Include (W x D):
(All Dimensions Are In Inches)
8.00 x 11.50
11.25 x 11.50
**Please Check The Mounting Pattern For Your Existing Seat Before Ordering.**
Fits John Deere® Skid Steers (Will Only Fit The Models Listed If The Original Seat Did Not Have A Suspension): 24, 24A, 70, 90, 125, 170, 240, 250, 260, 270, 280, 313, 315, 317, 318D, 318E, 319D, 319E, 320, 320D, 320E, 324E, 325, 326D, 326E, 328, 328D, 328E, 332, 332D, 332E, CT315
