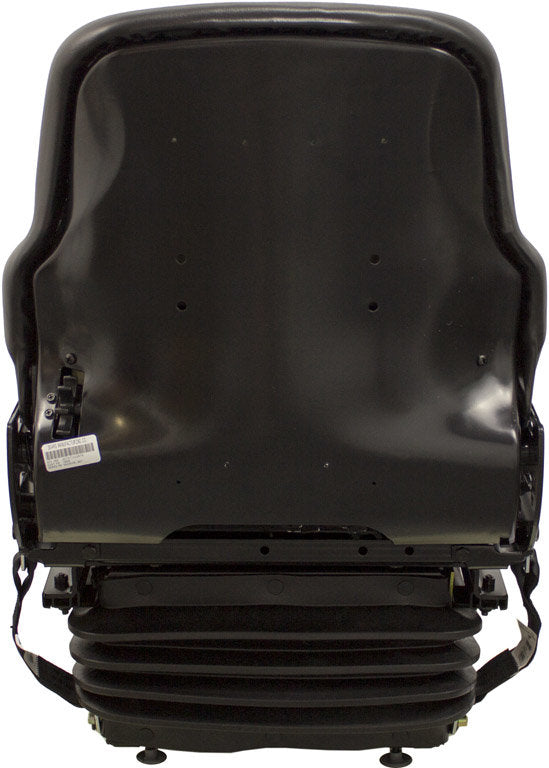

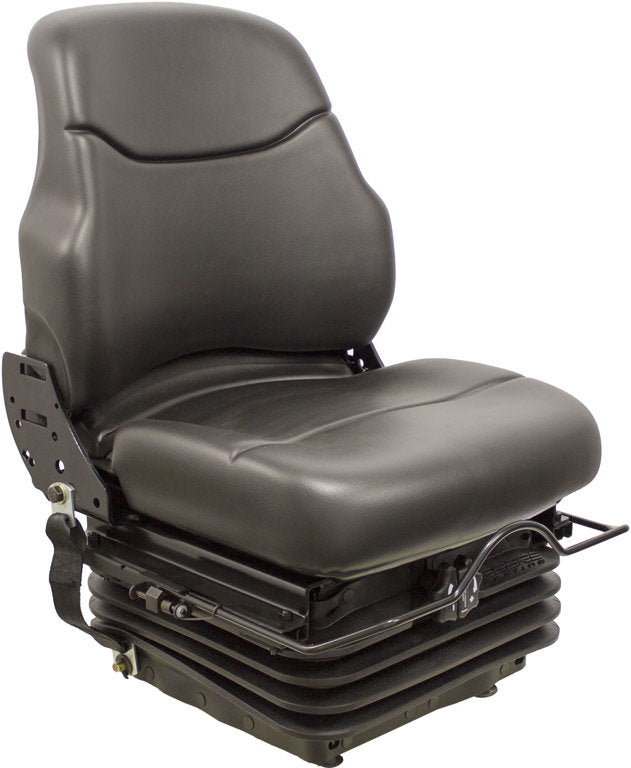

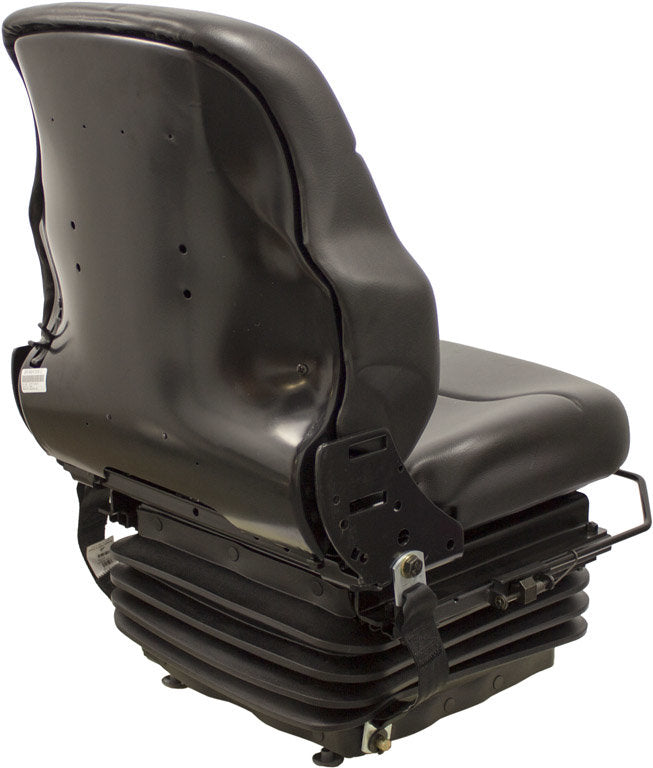

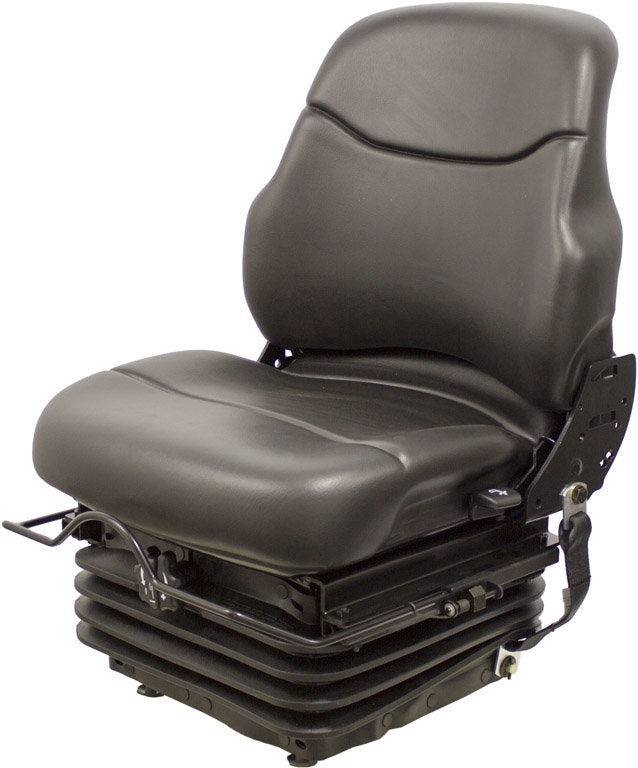

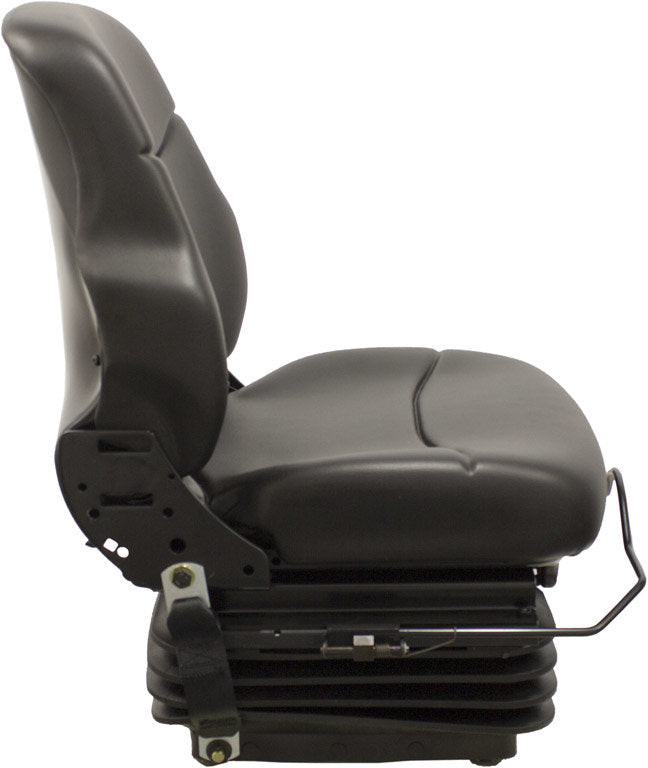

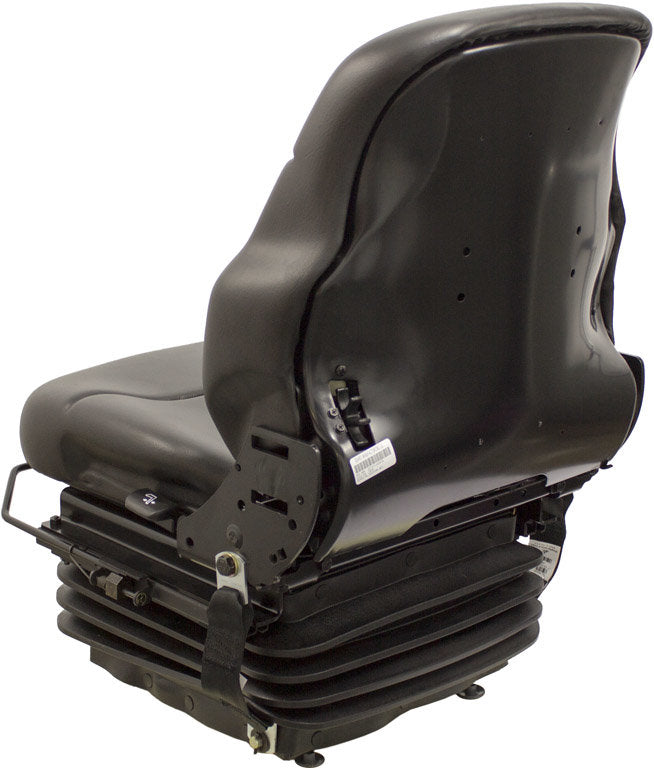

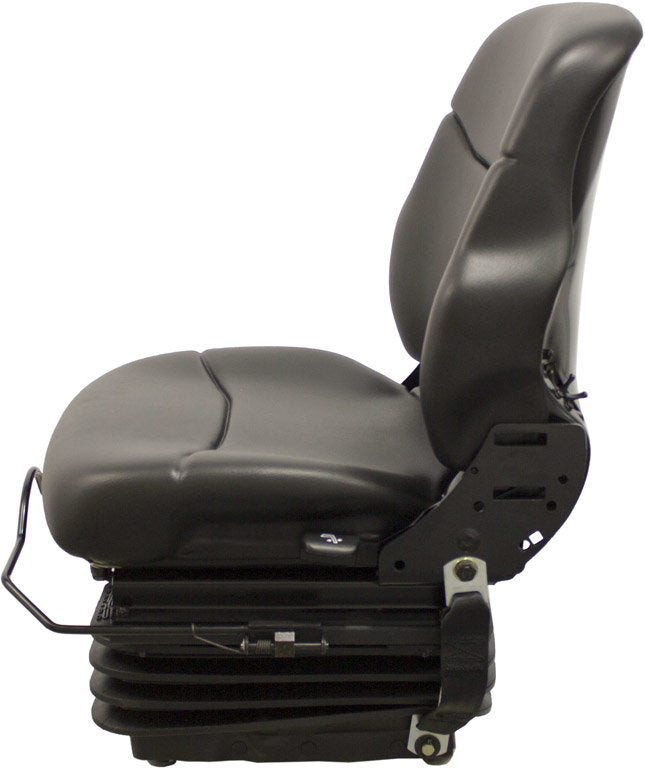

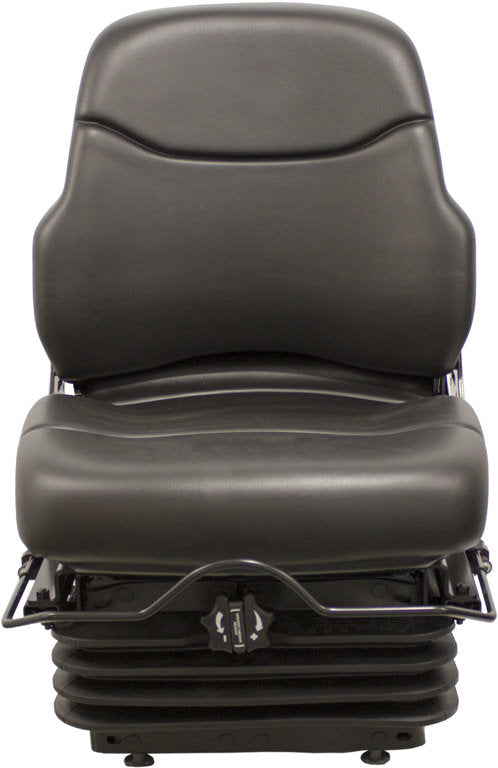

Caterpillar Aftermarket Seat & Mechanical Suspension For Crawler Tractor-Loader-Dozers

*Please Verify All Measurements And Model Numbers (The WHOLE Model Number). In Some Cases, Particular Machines Have Multiple Options. It Is Up To You To Decide For Sure If This Item Fits Your Machine. If You Need Help, Please Call Or Email Us.*

Features:

• Durable fabric or vinyl covering
• Mechanical suspension with 3" suspension stroke
• Ergonomical contoured foam cushions to ensure operator comfort
• Adjustable backrest angle for individual fit and comfort
• 2" internal height adjustment
• Weight adjustment
• Internal tethers
• Double-locking slide rails provide fore/aft adjustment
• Rubber molded suspension cover to keep components free of dust and dirt

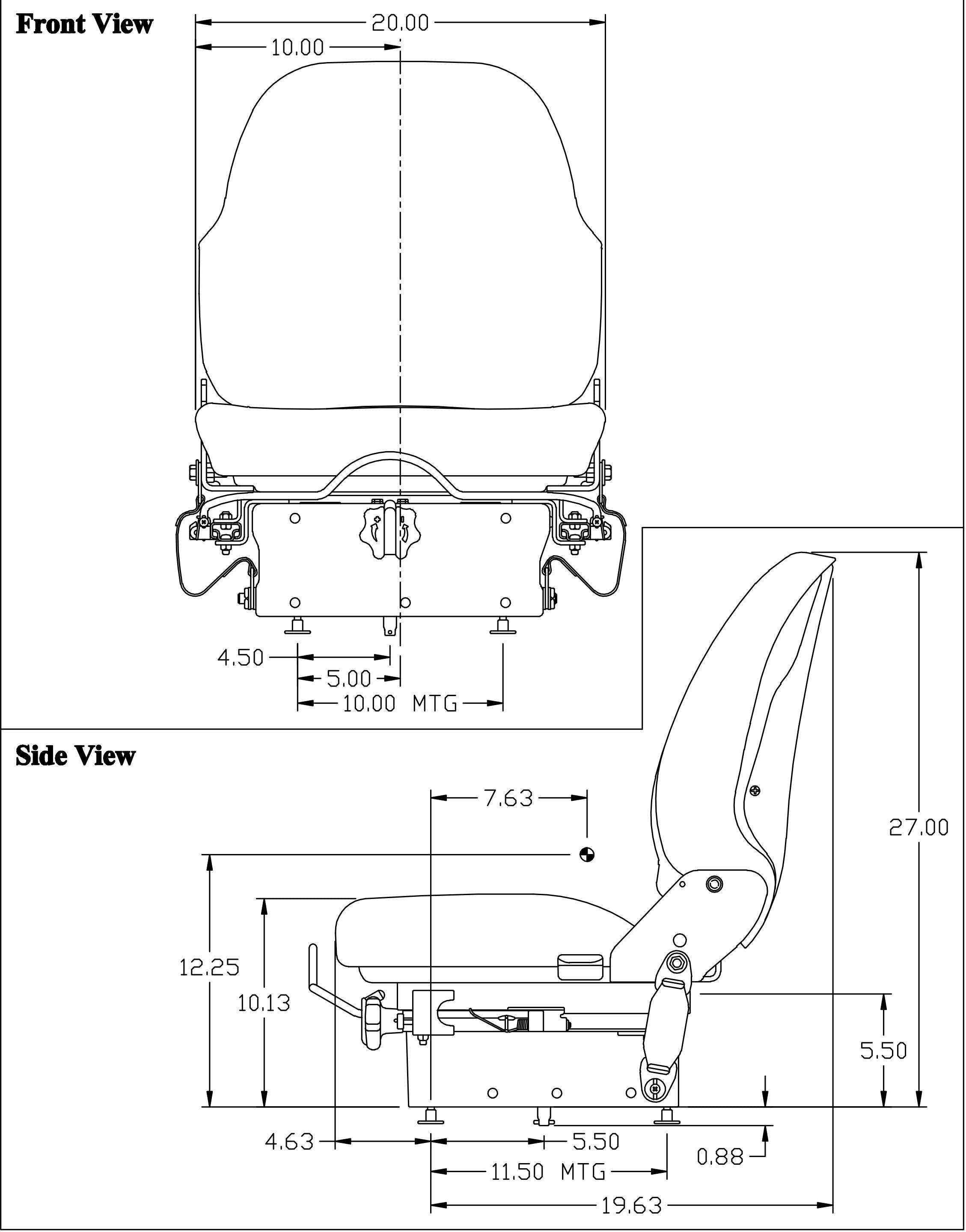

Mounting Pattern (W x D):

(All Dimensions Are In Inches)

10.00 x 11.50

**Please Check The Mounting Pattern On Your Existing Seat Before Ordering.**

Available Color Options:

• Charcoal Gray Fabric (PN: 8008)
• Black Vinyl (PN: 7808)

Available Options:

• LH Armrest Kit (PN: 8140)
• RH Armrest Kit (PN: 8141)
• Retractable Seat Belt (PN: 7977)
• 3" Retractable Seat Belt (PN: 8417)

Available Maintenance Items (Only Fit This Seat Assembly, Not OEM):

• Replacement Backrest Cushion in Black Vinyl (PN: 8163)
• Replacement Seat Cushion in Black Vinyl (PN: 8162)

Fits Caterpillar® Crawler Tractor-Loader-Dozer: D3C, D3C II, D3C III, D3C HST III, D3C XL, D3C LGP III, D3C LGP HST III, D3C XL III, D3C XL HST, D3C XL HST III, D3G LGP, D3K LGP, D3K XL, D4XL III, D4C HST III, D4C LGP, D4C LGP HST, D4C XL III, D4C XL HST III, D4C XL, D4G, D4G LP, D4G XL, D4H II, D4H LGP, D4H LGP II, D4H LGP III, D4H XL, D4H XL II, D4H XL III, D4K LGP, D4K XL, D5 XL, D5C, D5C III, D5C HST, D5C HST III, D5C LGP, D5C LGP III, D5C LGP HST, D5C LGP HST III, D5C XL, D5C XL II, D5C XL III, D5C XL HST, D5C XL HST III, D5G, D5G LGP, D5G XL, D5H LGP, D5H LGP II, D5H XL II, D5K, D5K LGP, D5K XL, D5M, D5M LGP, D5M XL, D5N, D5N LGP, D5N XL, D6H II, D6H LGP, D6H LGP II, D6H XL, D6H XL II, D6H XL LG II, D6K LGP, D6K XL, D6M, D6M LGP, D6M XL, D6N, D6N LGP, D6N LGP II, D6N XL, D6R, D6R II, D6R III, D6R DS XL II, D6R LGP, D6R LGP II, D6R LGP III, D6R LGP VP III, D6R XL, D6R XL II, D6R XL III, D6R XW, D6R XW II, D6R XW III, D6T LGP, D6T XL, D6T XW, D7H II, D7R, D7R II, D7R LGP, D7R LGP II, D7R XL, D7R XR, D7R XR II, D8R, D8R II, D8R II WDA, D8R WDA, D8T, D8T XL, D9R, D9T, D10R, D10R II, D10T, D11N, D11R
