Case IH Complete Aftermarket LED Light Kit For Magnum-MX Series Maxxum Tractors
Use This Complete Plug And Play Replacement LED Light Kit For All Hood, Front And Rear Upper Cab, Rear Fender And Mid Mount Lights On Case IH® Magnum and MX Series Maxxum Tractors.
This Complete Led Light Kit Works With Tractor Model Years 2014 & Older With Wraparound Upper Cab Lights. If You Have A Newer Model Tractor With Oval Upper Cab Lights, This Kit Will Not Be A Complete Replacement. Lights Will Bolt Directly Into Factory Light Housing.
*Please Verify All Measurements And Model Numbers (The WHOLE Model Number). In Some Cases, Particular Machines Have Multiple Options. It Is Up To You To Decide For Sure If This Item Fits Your Machine. If You Need Help, Please Call Or Email Us.*
Save Yourself Time And Money With LED Lights That Are IP68 Rated So That No Dust Will Get In Your Light And Your Light Can Be Fully And Continuously Submerged In Water, But There Will Be No Side Effects. These Lights Have Filters That Will Eliminate Unwanted Radio And Electromagnetic Frequencies From External Sources. Their Die-Cast Aluminum Housing/Heatsink Gives Them Long-Lasting Durability For A High Quality And Long Service Life. Aluminum Housing Is Specifically Designed To Dissipate Heat Away From The Internal Electronics, Which Increases Light Output And Improves Performance. This Light Is Designed To Handle Any Severe Environmental Condition.
This LED Light Features A Durable Polycarbonate Lens, It Is Built To Be RoHs Compliant, And Comes With Stainless Steel Hardware. The Color Of Light LEDs Emit Is Near The Color Spectrum Of The Mid-Day Sun And Allows The Human Eye To Function And View Objects Better To Improve Your Work Environment.
Features:
Tiger Lights CASEKIT14 Light Kit
Driving, flood, flood/spot or amber flashing/flood beam pattern
45,000 effective lumens
510 watts
Input voltage: 12-Volt to 24-Volt
Plug and play wiring for easy install
Use original mount and wiring

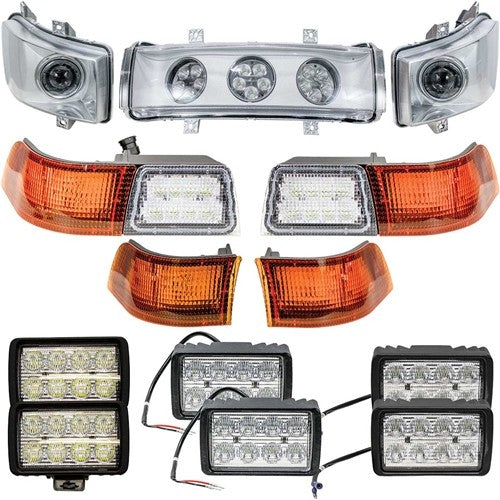

Kit includes: 13 lights (3 front hood, 1 left-hand front upper cab corner, 1 right-hand front upper cab corner, 1 left-hand rear upper cab corner, 1 right-hand rear upper cab corner, 2 rear upper cab, 2 rear fender and 2 mid mount lights), connectors, adapters and hardware
Left-Hand Wraparound Hood Light Features (PN: 2641 - TL6160L Light):
1 LED light is 14.87" x 9.94" x 7.21" (W x H x D)
Driving beam pattern
1,200 effective lumens
30 watts
2.5 amp draw
Features a DOT and E-Marked light pattern, specifically designed for road travel
Right-Hand Wraparound Hood Light Features (PN: 2642 - TL6160R Light):
1 LED light is 14.87" x 9.94" x 7.21" (W x H x D)
Driving beam pattern
1,200 effective lumens
30 watts
5 amp draw
Features a DOT and E-Marked light pattern, specifically designed for road travel
Center Hood Light Features (PN: 2640 - TL6150 Light):
1 LED light is 20.75" x 8.6" x 6.9" (W x H x D)
Flood/spot beam pattern
15,000 effective lumens
15 LEDs
150 watts
15 amp draw
Replaces current OEM lights and housing
Includes 3 LED lights with connectors attached to aluminum housing
Left-Hand Front Upper Cab Corner Amber Light with Attached White Work Light Features (PN: 2627 - TL6120L Light):
1 LED light
Amber flashing/flood beam pattern
Amber light watts: 17W + 12W resistor
Amber light: 2.4 amp draw
White light: 3,000 effective lumens
White light: 8 LEDs
White light: 30 watts
White light: 3.3 amp draw
Plug and play wiring for easy install
Right-Hand Front Upper Cab Corner Amber Light with Attached White Work Light Features (PN: 2628 - TL6120R Light):
Rear Upper Cab Light Features (PN: 3106 - TL3030 Light):
2 LED lights are 6" x 3.5" x 3" (W x H x D)
Flood beam pattern
3,600 effective lumens
8 LEDs
40 watts
3.33 amp draw
Bottom mount
Plug and play wiring for easy install
Rear Fender Light Features (PN: 2775 - TL3085 Light):
2 LED lights are 6" x 3.5" x 3" (W x H x D)
Flood beam pattern
3,600 effective lumens
8 LEDs
40 watts
3.33 amp draw
Comes with a hollow bolt to easily run the wire to hide under the fender
Plug and play wiring for easy install
Mid Mount Light Features (PN: 2762 - TL3075 Light):
2 LED lights are 6" x 3.5" x 3" (W x H x D)
Flood beam pattern
3,600 effective lumens
8 LEDs
40 watts
3.3 amp draw
Side mount bracket
Installation may require wire splicing into original wiring
Replaces All Hood, Front And Rear Upper Cab, Rear Fender And Mid Mount Lights (3 Front Hood, 1 Left-Hand Front Upper Cab Corner, 1 Right-Hand Front Upper Cab Corner, 1 Left-Hand Rear Upper Cab Corner, 1 Right-Hand Rear Upper Cab Corner, 2 Rear Upper Cab, 2 Rear Fender And 2 Mid Mount Lights).
Manufacturer's Limited Lifetime Warranty
Fits Case IH® Magnum and MX Series Maxxum Tractors:
Magnum Series: Magnum 180, Magnum 190, Magnum 200, Magnum 210, Magnum 215, Magnum 220, Magnum 225, Magnum 235, Magnum 240, Magnum 245, Magnum 250, Magnum 260, Magnum 275, Magnum 280, Magnum 290, Magnum 305, Magnum 310, Magnum 315, Magnum 335, Magnum 340, Magnum 370, Magnum 380
