Dresser Aftermarket Sears Bucket Seat For 412B Scraper

*Please Verify All Measurements And Model Numbers (The WHOLE Model Number). It Is Up To You To Decide For Sure If This Item Fits Your Machine. If You Need Help, Please Call Or Email Us.*

Features:

• Heavy-duty Black Vinyl covering
• One-piece stamped steel pan seat that is corrosion resistant
• One-piece molded, ergonomically contoured foam cushion to ensure operator comfort
• Waterproof with central drain hole prevents water build-up
• Protective trim edge

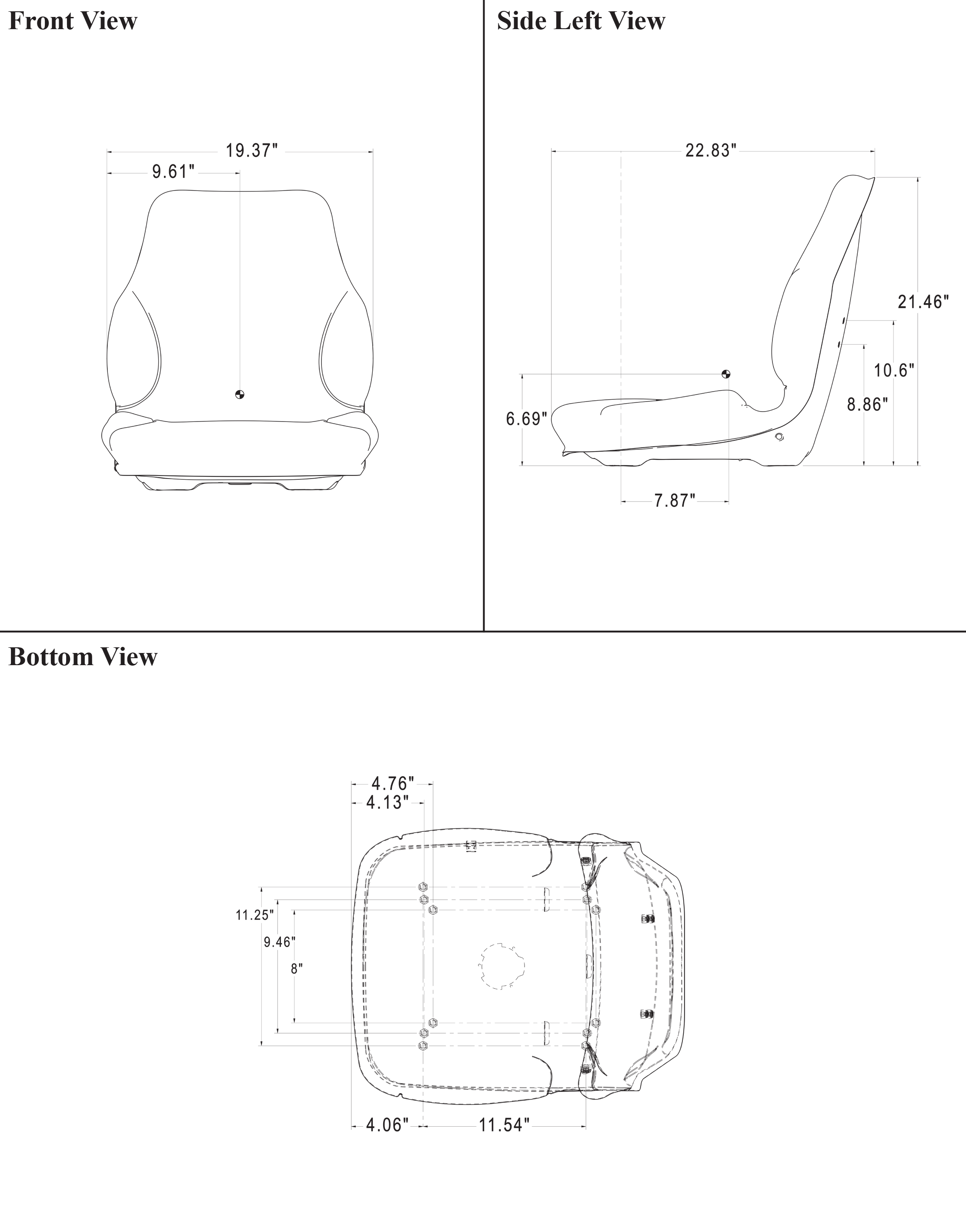

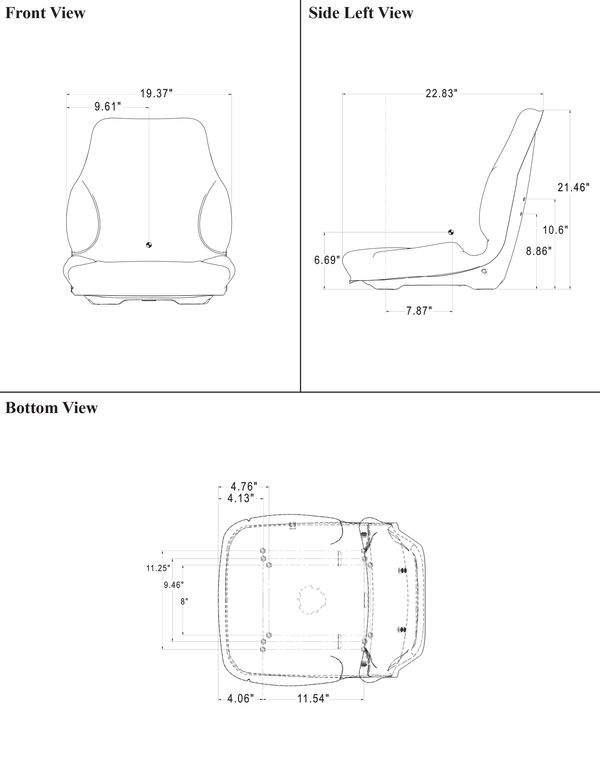

• Seat dimensions: 19.37" x 21.46" x 22.83" (W x H x D)
• Accepts operator presence switch

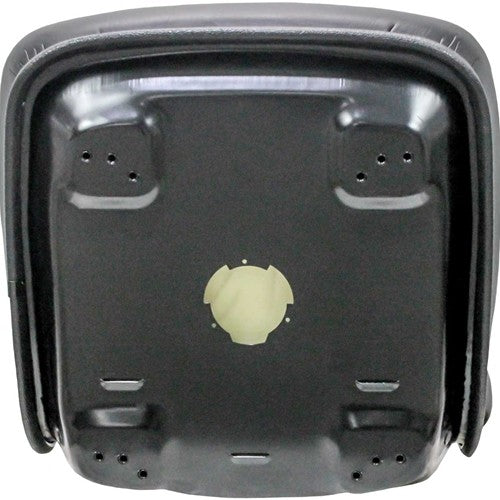

• Multiple mounting patterns

Mounting Patterns Include (W x D):

(All Dimensions Are In Inches)

• 8.00 x 11.50
• 9.46 x 11.50
• 11.25 x 11.50

**Please Check The Mounting Pattern On Your Existing Seat Before Ordering.**

Available Color Options:

• Black Vinyl (PN: 8742)
• Gray Vinyl (PN: 8754)

Available Options:

• Seat Belt Bracket Necessary with Part Numbers 7911 & 7925 (PN: 6002)
• Lap Belt Kit (PN: 7911)
• Retractable Seat Belt Kit (PN: 7925)
• Retractable Seat Belt with Switch - 47" Long (PN: 8443)
• Orange Retractable Seat Belt Kit - 51.5" Long (PN: 8590)
• Slide Rail Kit (PN: 6043)
• Operator Presence Switch Kit - Normally Open (PN: 8666)
• Operator Presence Switch Kit - Normally Closed (PN: 8667)

Fits Dresser® Scraper: 412B
