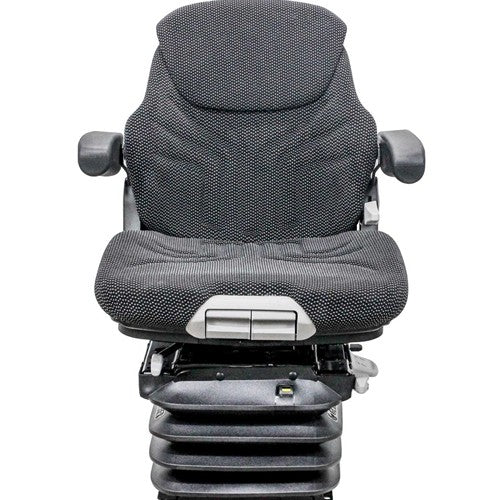

Case Aftermarket Seat & Air Suspension For Wheel Loaders

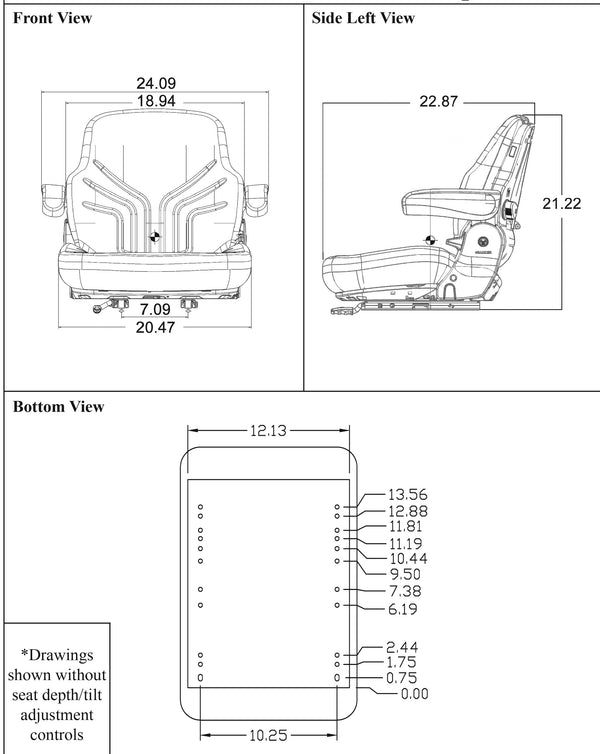

*Please Verify All Measurements And Model Numbers (The WHOLE Model Number). In Some Cases, Particular Machines Have Multiple Options. It Is Up To You To Decide For Sure If This Item Fits Your Machine. If You Need Help, Please Call Or Email Us.*

Features:

• Assembly is required (seat and suspension do not come attached)
• Grammer MSG95/731 Seat
• Durable Black/Gray Matrix Fabric covering
• Self-contained 12-Volt air compressor with 4" suspension travel
• Contoured foam cushions for maximum operator comfort
• Tapered back support with adjustable backrest for added comfort and versatility
• Backrest extension for extra backrest height
• Seat cushion depth/tilt and angle adjustment for custom fit
• Fold-up armrests allow for easy access to the seat
• Accepts operator presence switch
• Slide rails provide fore/aft adjustment ensuring operator comfort
• Side controls
• Fore/aft isolator
• Suspension stroke up to 7"
• Manual weight adjustment
• 110 - 285 lb weight adjustment with weight indicator
• Height adjustment of 3"
• Shock absorber adjustments for individual comfort

Includes a durable suspension cover to keep components free of dirt and dust.

Available Options:

• Swivel Kit (PN: 5007)
• Lumbar Support Kit (PN: 8455)
• Retractable Seat Belt Kit (PN: 7996)
• Operator Presence Switch Kit (PN: 7961)
• Grammer Seat/Backrest Cover Kit in Alcanta Two-Tone Gray Fabric (PN: 8065)
• Grammer Backrest Extension Cover Kit in Alcanta Two-Tone Gray Fabric (PN: 8066)
• MSG85/95 Lateral Isolator Kit* (PN: 8400)

*The MSG85/95 Lateral Isolator Kit Will Only Work If A Grammer 700 Series Seat Top Is Being Used.

Available Maintenance Items (Only Fit This Seat Assembly, Not OEM):

• Replacement Fold-Up Armrest: Left-Hand (PN: 8538)
• Replacement Fold-Up Armrest: Right-Hand (PN: 8539)
• Replacement Fold-Up & Adjustable Armrest: Left-Hand (PN: 7966)
• Replacement Fold-Up & Adjustable Armrest: Right-Hand (PN: 7967)
• Replacement Backrest Extension Kit in Black/Gray Matrix Fabric (PN: 8365)
• Replacement Backrest Extension Install Kit (PN: 8573)
• Replacement Backrest Cushion in Black/Gray Matrix Fabric (PN: 7995)
• Replacement Seat Cushion in Black/Gray Matrix Fabric (PN: 8251)
• Replacement MSG85/95 Seat Belt Cover Kit (PN: 8372)
• Replacement Seat Depth/Tilt Kit (PN: 8594)
• Replacement Slide Rail Kit (PN: 6048)
• Replacement 12-Volt Air Compressor Kit (PN: 7993)
• Replacement Airbag Kit (PN: 8020)
• Replacement MSG95 Fore/Aft Isolator Kit (PN: 8210)
• Replacement MSG95 Fore/Aft Isolator Lock Kit (PN: 8513)
• Replacement MSG95 Shock Kit (PN: 8294)
• Replacement Suspension Switch (PN: 8023)
• Replacement Swing Arm Kit (PN: 8131)

Fits Case® Wheel Loaders: 21E, 121E, 221D, 221E, 321D, 321E, 521D, 521E, 621C, 621D, 621E, 721C, 721D, 721E, 821C, 821E, 921C, 921E, 1021F, 1121E, 1121F, 1221E

Replaces Case® Part Numbers: 2813985, 399257A1, 399261A1
