MSG93 Air Suspension

*Direct Replacement For Original Grammer MSG93 Air Suspension*

*When Using PN: 7993 With The MSG93 Air Suspension, You Must Reuse The Original Mounting Hardware, Hoses And Wires*

*Please Verify All Measurements And Model Numbers (The WHOLE Model Number). In Some Cases, Particular Machines Have Multiple Options. It Is Up To You To Decide For Sure If This Item Fits Your Machine. If You Need Help, Please Call Or Email Us.*

Features:

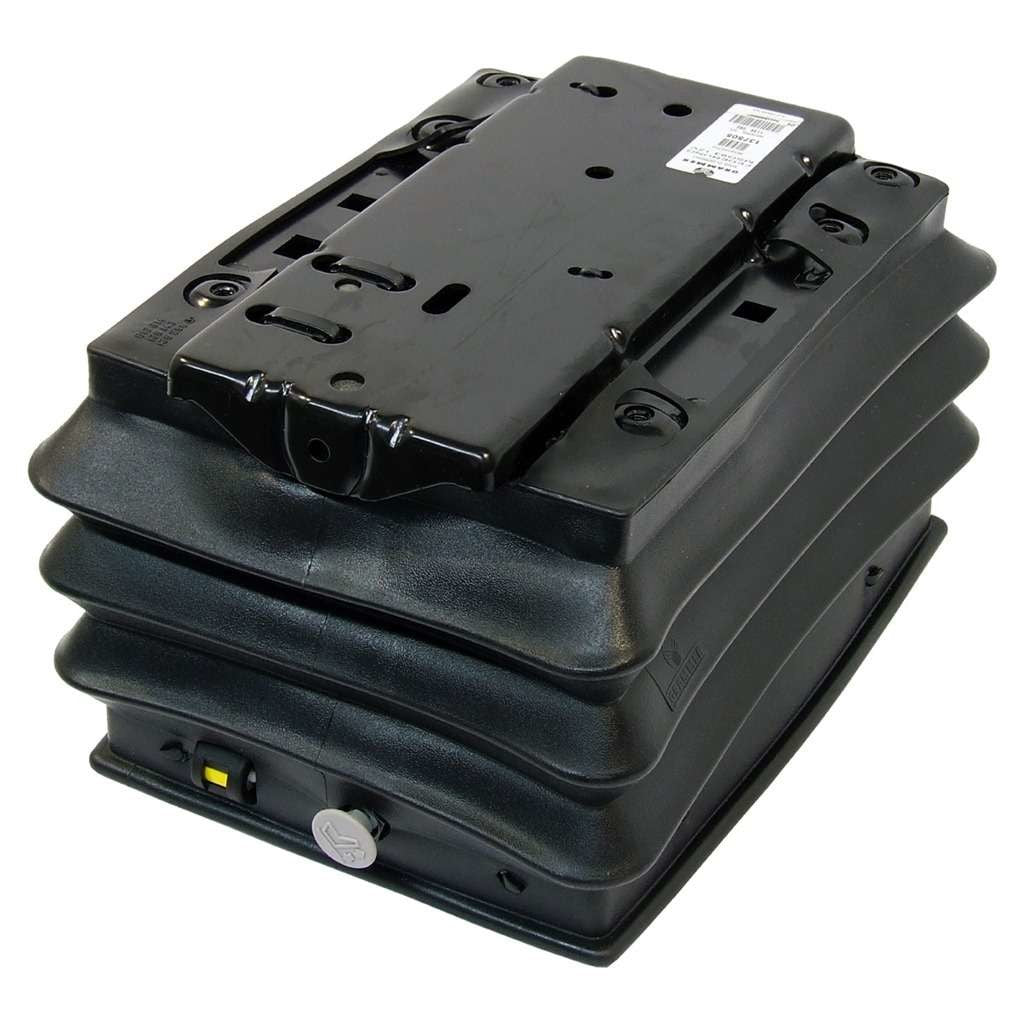

• Grammer MSG93 Air Suspension
• Narrow, compact air suspension
• Frame width of 8.92"
• Self-contained 12-Volt compressor
• Manual weight adjustment with push-pull switch control
• Easily accessible front controls
• Durable rubber molded suspension cover to keep components free of dirt and dust

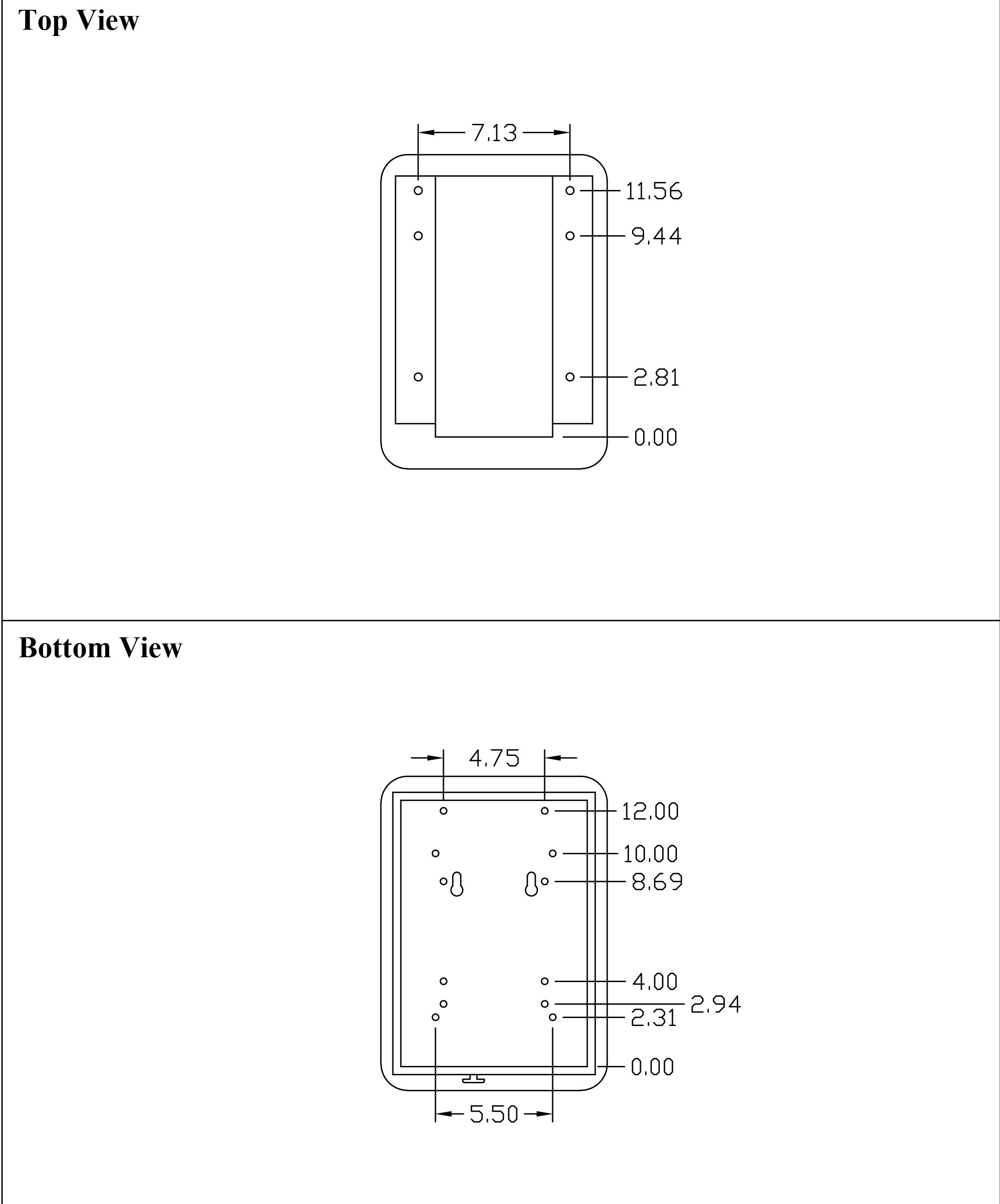

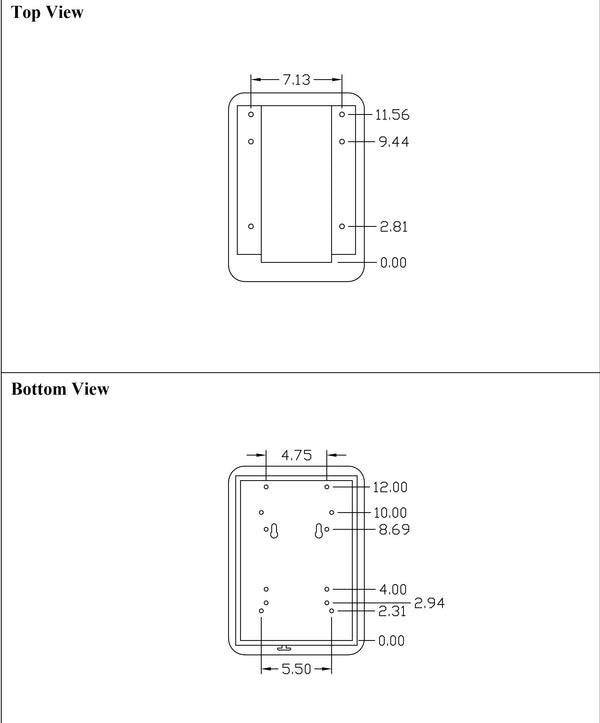

Top mounting pattern of 7.13" side-to-side.

Available Maintenance Items:

• Replacement Airbag Kit (PN: 8554)
• Replacement Air Switch Kit (PN: 8559)
• *Replacement 12-Volt Air Compressor Kit (PN: 7993)

Fits AGCO® Tractors: GT55, GT65, GT75

Fits Allis Chalmers® Tractors: 6670, 6680, 6690

Fits Case IH® JX Series and Farmall Series Tractors:

• JX Series: JX55, JX60, JX70, JX75, JX80, JX85, JX95
• Farmall® Series: 75U, 85U, 90, 95, 95C, 95HC, 95U, 105U

Fits Ford®-New Holland® Tractors (With Original Grammer Seat): TD80D, TD95D, TD5030, TD5050, TN55D, TN55S, TN65D, TN65F, TN65S, TN65V, TN70D, TN70S, TN75D, TN75F, TN75S, TN75V, TN90F

Fits John Deere® Lawn Mowers and Tractors (When Using Original Grammer MSG93 Air Suspension):

• Lawn Mowers: 1600, 1600T, 1620, 3215B, 3225B, 3225C, 3235B, 3235C, 3245C
• Tractors: 5083E, 5093E, 5101E, 5220, 5225, 5320, 5325, 5420, 5425, 5520, 5525, 5603, 5625, 6110, 6110L, 6120, 6120L, 6200, 6200L, 6210, 6210L, 6215, 6220, 6220L, 6230, 6300, 6300L, 6310, 6310L, 6320, 6330, 6400, 6400L, 6403, 6405, 6410, 6410L, 6415, 6430, 6500, 6500L, 6510L, 6603, 6605, 6615, 6715, 7130, 7230, 7330

Replaces John Deere® Lawn Mower Part Numbers: TCA19757, TCA51087

Fits Massey Ferguson® Tractors (With Cab And Original Grammer Suspension): 471, 481, 491, 492, 573, 583, 593, 596, 2220, 2650, 2660, 2670, 2680, 3315, 3325, 3330, 3340, 3350, 3355

Fits White® Tractors (With Cab And Original Grammer Seat - Will Not Fit If The Original Seat Is KAB): 6065, 6085
