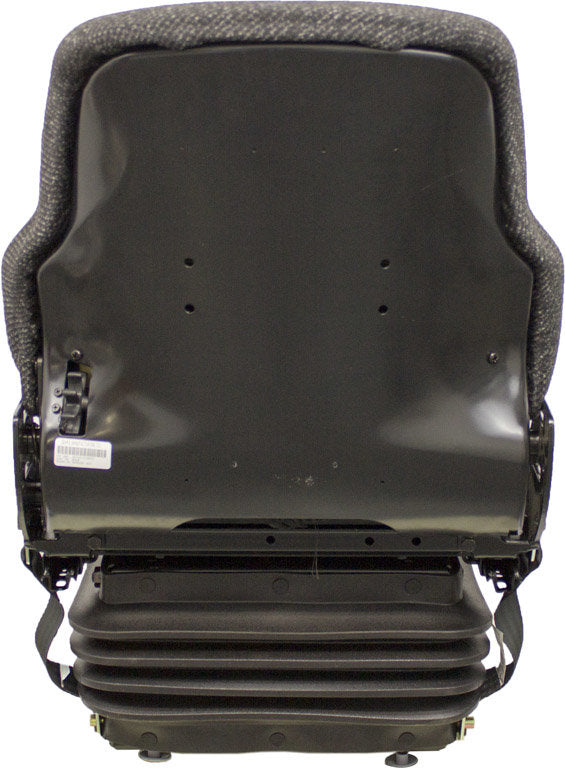

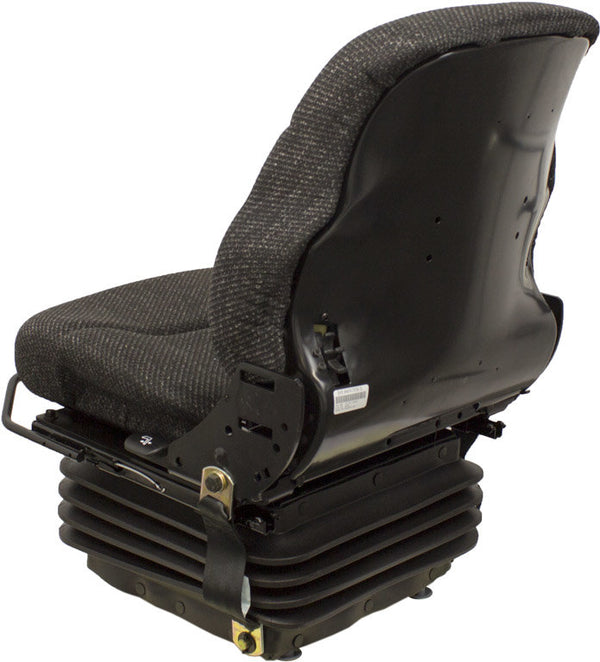

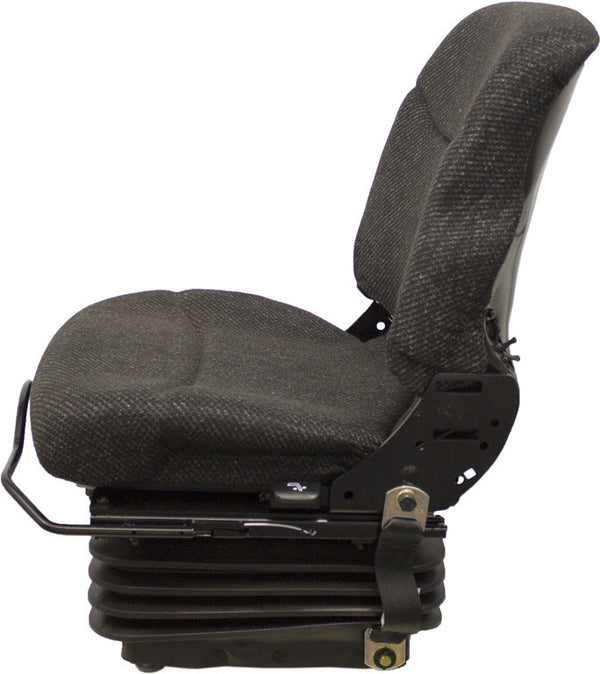

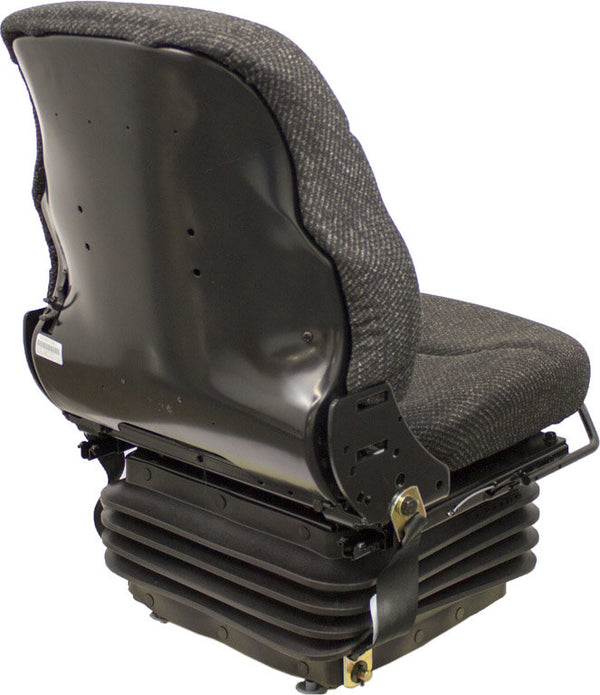

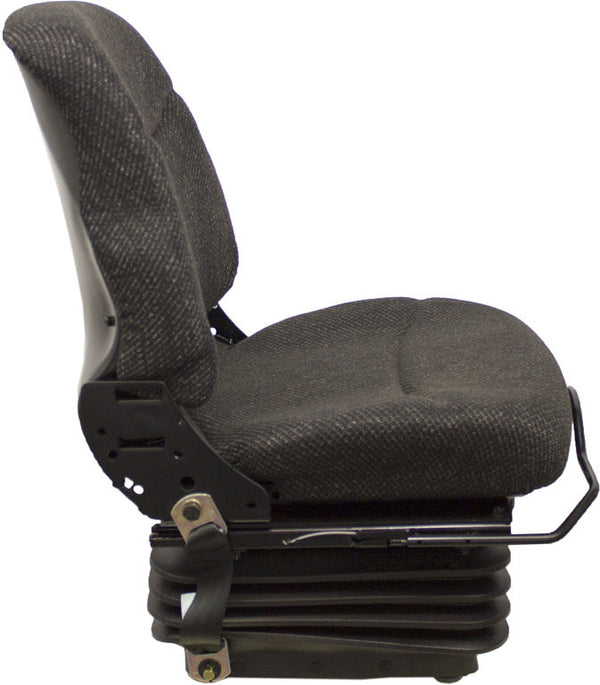

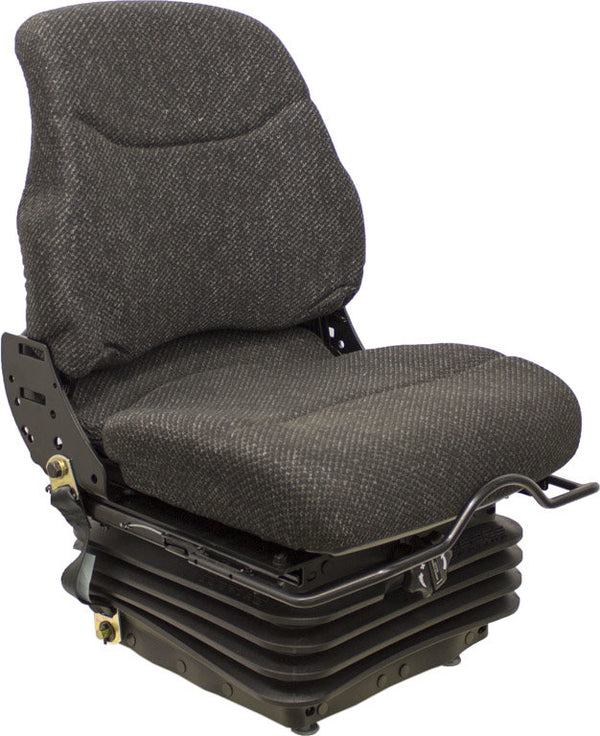

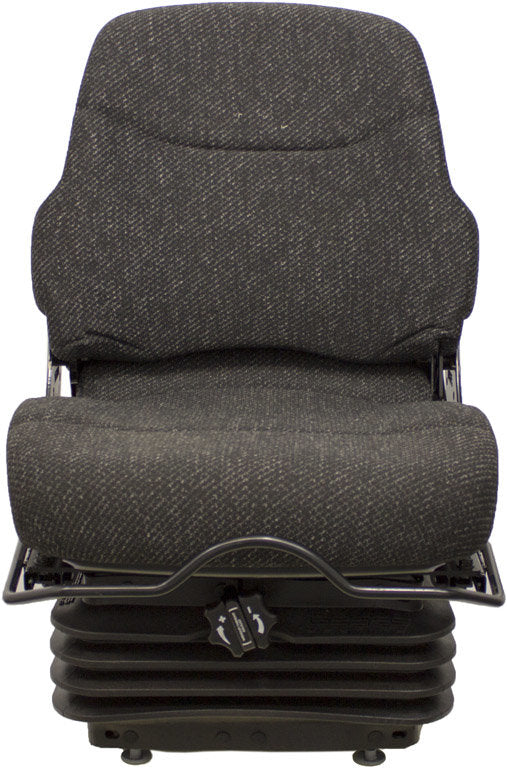

Case Aftermarket Seat & Mechanical Suspension For Dozers

*Please Verify All Measurements And Model Numbers (The WHOLE Model Number). In Some Cases, Particular Machines Have Multiple Options. It Is Up To You To Decide For Sure If This Item Fits Your Machine. If You Need Help, Please Call Or Email Us.*

Features:

• Durable fabric or vinyl covering
• Mechanical suspension with 3" suspension stroke
• Ergonomical contoured foam cushions to ensure operator comfort
• Adjustable backrest angle for individual fit and comfort
• 2" internal height adjustment
• Weight adjustment
• Internal tethers
• Double-locking slide rails provide fore/aft adjustment
• Rubber molded suspension cover to keep components free of dust and dirt

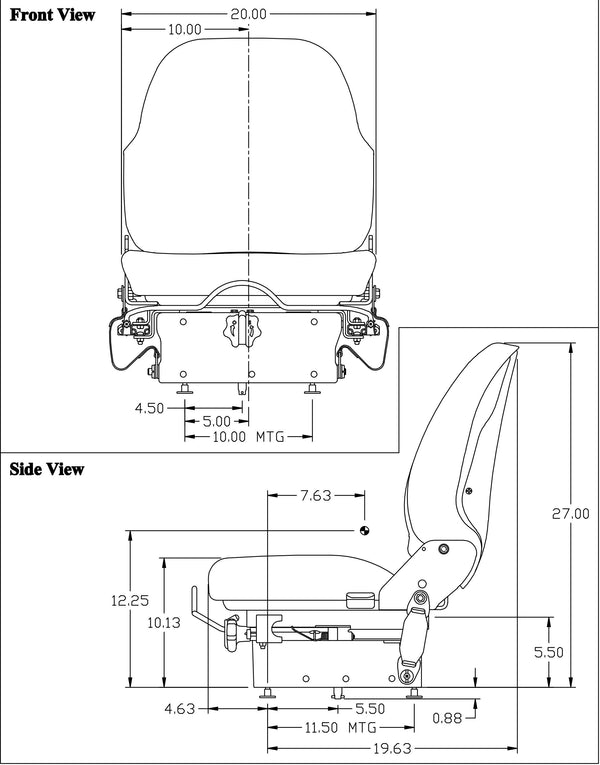

Mounting Patterns Include (W x D):

(All Dimensions Are In Inches)

10.00 Side-To-Side

11.50 Front-Back

**Please Check The Mounting Pattern On Your Existing Seat Before Ordering.**

Available Color Options:

• Charcoal Gray Fabric (PN: 8008)
• Black Vinyl (PN: 7808)

Available Options:

• LH Armrest Kit (PN: 8140)
• RH Armrest Kit (PN: 8141)
• Retractable Seat Belt (PN: 7977)
• 3" Retractable Seat Belt (PN: 8417)

Available Maintenance Items (Only Fit This Seat Assembly, Not OEM):

• Replacement Backrest Cushion in Black Vinyl (PN: 8163)
• Replacement Seat Cushion in Black Vinyl (PN: 8162)

Fits Case® Crawler Dozers: 550H, 650H, 650K, 650L, 650L LGP, 750H, 750L, 750L LGP, 850H, 850K, 850L, 850L LGP, 1150H, 1150K, 1650K, 1850K
