Kubota Aftermarket Seat & Mechanical Suspension Kit For M Series Tractors

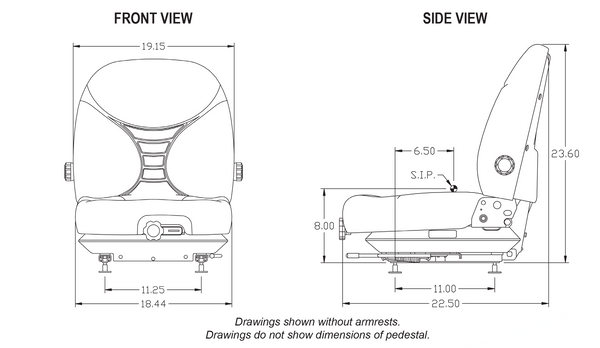

*Image For Installation Instructions Does Not Show Standard Armrests*
*Replaces The Original Vanguard Seat*
*Please Verify All Measurements And Model Numbers (The WHOLE Model Number). In Some Cases, Particular Machines Have Multiple Options. It Is Up To You To Decide For Sure If This Item Fits Your Machine. If You Need Help, Please Call Or Email Us.*
Features:
Durable Black Vinyl covering
Mechanical suspension with 2.36" suspension travel
Seat width is 18.5"
Contoured foam cushions to ensure operator comfort
Drain hole prevents water build-up
Backrest angle adjustment from 5° forward to 15° backward
Adjustable lumbar support to help prevent lower back pain
Fold-up armrests
Seat belt fixation points for added safety
Manual weight adjustment with a maximum allowable weight of 270 lbs
Slide rails with 6" travel
Comes standard with operator presence switch that meets OEM safety standards
Conforms with ISO 796-EM9, SAE J1194, and FM-VSS302 for flammability
