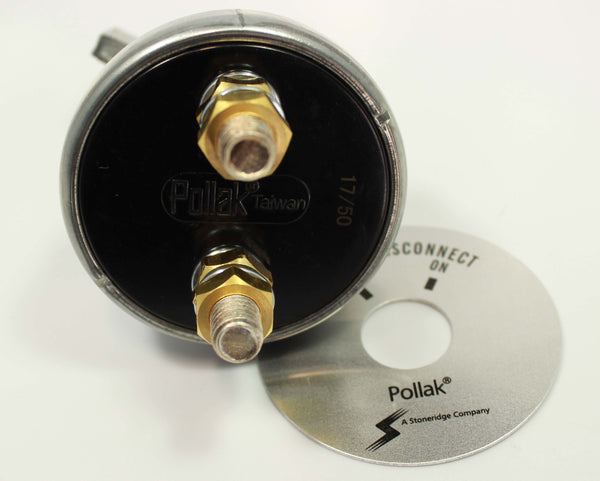

POLLAK 51-902 MASTER DISCONNECT SWITCH LEVER OPERATED

THIS BRAND NEW AND GENUINE MASTER DISCONNECT SWITCH IS LEVER OPERATED AND FEATURES A 6-36 VDC, 180 AMPS CONTINUOUS CAPACITY AND 1000 AMPS IN RUSH. IT ALSO FEATURES AN SINGLE POLE SINGLE THROW (OFF-ON) CIRCUITRY AND TWO STUD TERMINALS. THIS MASTER DISCONNECT SWITCH IS USED FOR BATTERY CIRCUIT ONLY. IT DOES NOT DISCONNECT ALTERNATOR OR GENERATOR FIELD CIRCUIT. FOR VEHICLES EQUIPPED WITH ALTERNATORS, ENGINE MUST BE SHUT OFF TO AVOID POTENTIAL DAMAGE TO ALTERNATOR DIODES. THIS DISCONNECT SWITCH WILL DISCONNECT ALL CIRCUITRY TO REDUCE POSSIBILITY OF ACCIDENTAL FIRE OR THEFT.

SPECIFICATIONS:

CURRENT RATING: 180 DC AMP
VOLTAGE RATING: 6-36 VDC
CIRCUITRY: SPST ON-OFF
TERMINALS: 2 STUD
INDIVIDUALLY SEALED CONTACTS
ONE PIECE DIE-CAST HOUSING SEALED WITH O-RINGS AT BASE AND MOUNTING STEM TO KEEP OUT DUST AND MOISTURE
TWO 3/8" COPPER ALLOY STUD TERMINALS WITH HEX NUTS AND LOCK WASHERS
LENGTH: 4 3/8"
DIAMETER: 2 5/8"
CONFORMS TO REQUIREMENTS OF U.L. #558
MOUNTING STEM 3/4" DIA, 1/2" LONG WITH 2 HEX NUTS AND LOCK WASHER (MOUNTING NUTS NOT TO EXCEED 12 FT LBS TORQUE)
FITS PANELS UP TO 1/4" THICK
