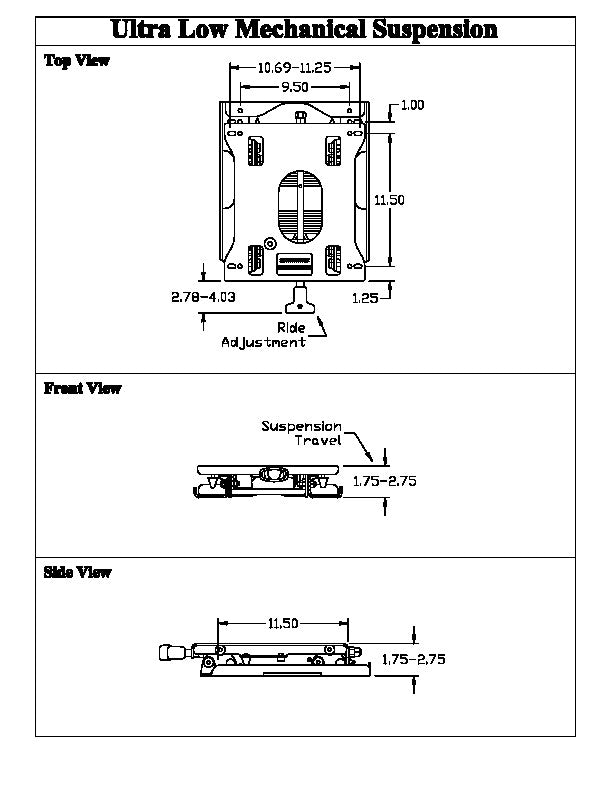

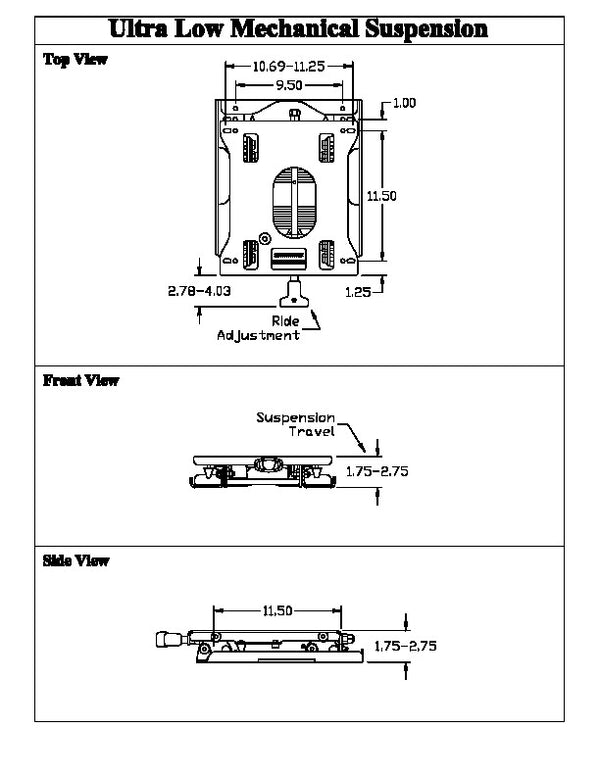

*It Is The Buyer's Responsibility If They Are Purchasing This Item That It Will Fit Their Application. Please Check The Technical Drawings To View The Mounting Pattern Provided So You Can Measure Your Current Seat Application To Compare For Compatibility*
*This Suspension Is Designed To Fit Between Your Seat And Seat Slide Rails, So Measure Your Bolt Mounting Pattern On The Very Bottom Of The Seat Where The Slide Rails Bolt/Mount To The Seat*
*This Suspension Is Made By A Name Brand Manufacturer And Is Used By Most Name Brand Zero Turn Mower Companies. It Has A Universal Type Mounting And Fits A Lot Of Name Brand Mowers, But Some Models Vary Due To Year Changes. This Suspension Will Not Fit All Models*
Features:
Ideal for vertically limited applications
Base width of 12.88"
Wide base provides extra stability
Easy to use and operate weight control
Suspension travel of 1"
275 lb maximum weight capacity
Maximum height adjustment of 2.75"
Top mounting pattern of 10.69" - 11.25" side-to-side x 11.5" front-to-back.
