John Deere Complete Aftermarket LED Light Kit For 7020-7030 Series Tractors

Use This Complete Plug And Play Replacement LED Light Kit For All Hood, Mid Mount, Rear Fender And Rear Upper Cab Lights On John Deere® 7020 or 7030 Series Tractors.

*Please Verify All Measurements And Model Numbers (The WHOLE Model Number). In Some Cases, Particular Machines Have Multiple Options. It Is Up To You To Decide For Sure If This Item Fits Your Machine. If You Need Help, Please Call Or Email Us.*

Save Yourself Time And Money With LED Lights That Are IP68 Rated So That No Dust Will Get In Your Light And Your Light Can Be Fully And Continuously Submerged In Water, But There Will Be No Side Effects. These Lights Have Filters That Will Eliminate Unwanted Radio And Electromagnetic Frequencies From External Sources. Their Die-Cast Aluminum Housing/Heatsink Gives Them Long-Lasting Durability For A High Quality And Long Service Life. Aluminum Housing Is Specifically Designed To Dissipate Heat Away From The Internal Electronics, Which Increases Light Output And Improves Performance. This Light Is Designed To Handle Any Severe Environmental Condition.

This LED Light Features A Durable Polycarbonate Lens, It Is Built To Be RoHs Compliant, And Comes With Stainless Steel Hardware. The Color Of Light LEDs Emit Is Near The Color Spectrum Of The Mid-Day Sun And Allows The Human Eye To Function And View Objects Better To Improve Your Work Environment.

Features:

Tiger Lights JDKIT8 Light Kit
Flood or flood/spot beam pattern
47,000 effective lumens
580 watts
48.2 amp draw
Input voltage: 12-Volt to 24-Volt
Plug and play wiring for easy install
Use original mount and wiring

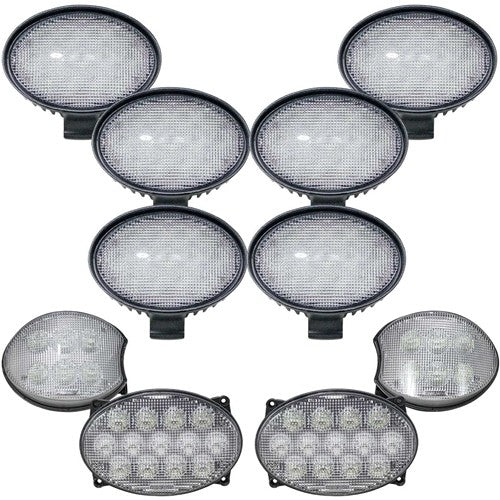

Kit includes: 10 lights (2 outer hood, 2 inner hood, 2 front mid mount, 2 rear fender and 2 rear upper cab lights), connectors, adapters and hardware

Left-Hand Outer Hood Light Features (PN: 2649 - TL7830L Light):

1 LED light is 6.5" x 4.75" x 2.75" (W x H x D)
Flood beam pattern
2,000 effective lumens
6 LEDs
30 watts
2.5 amp draw
Plug and play wiring for easy install

Right-Hand Outer Hood Light Features (PN: 2650 - TL7830R Light):

1 LED light is 6.5" x 4.75" x 2.75" (W x H x D)
Flood beam pattern
2,000 effective lumens
6 LEDs
30 watts
2.5 amp draw
Plug and play wiring for easy install

Inner Hood Light - Hi/Lo Features (PN: 2648 - TL7820 Light):

2 LED lights are 7.12" x 4.75" x 3" (W x H x D)
Flood/spot beam pattern
5,000 effective lumens
13 LEDs
65 watts
5.4 amp draw
Plug and play wiring for easy install
Will work for hi/lo and high beams

Mid Mount, Fender and Upper Cab Light Features (PN: 3120 - TL5680 Light):

6 LED lights are 6.5" x 4.5" x 4" (W x H x D)
Flood beam pattern
5,200 effective lumens
13 LEDs
60 watts
5 amp draw
Plug and play wiring for easy install

Replaces All Hood, Mid Mount, Rear Fender And Upper Cab Lights (2 Outer Hood, 2 Inner Hood, 2 Mid Mount, 2 Rear Fender And 2 Rear Upper Cab Lights).

Manufacturer's Limited Lifetime Warranty

Available Options:

7020 Series LED Amber Cab Corner Light (PN: 2651) - Need To Purchase 4 Lights To Replace All 4 Lights
7020 Series LED Upper Cab Light Kit (PN: 2958) - Replaces 2 Lights (Replace Upper Brackets On The Windshield And Add 2 Lights To Tuck Under Front Of Cab, Lights Will Pig Tail Off The Existing Lower Mid Mount Lights)
7030 Series LED Amber Cab Corner Light (PN: 2748) - Need To Purchase 4 Lights To Replace All 4 Lights
LED Extra Work Light (PN: 3120) - Need To Purchase 2 Or 4 Extra Work Lights Depending On If You Tractor Has More Work Lights Than What The Basic Kit Provides

Fits John Deere Late 7020 and 7030 Series Tractors:

7020 Series: 7720, 7820, 7920
7030 Series: 7630, 7730, 7830, 7930

John Deere 7020-7030 Series Tractor Complete Replacement LED Light Kit
