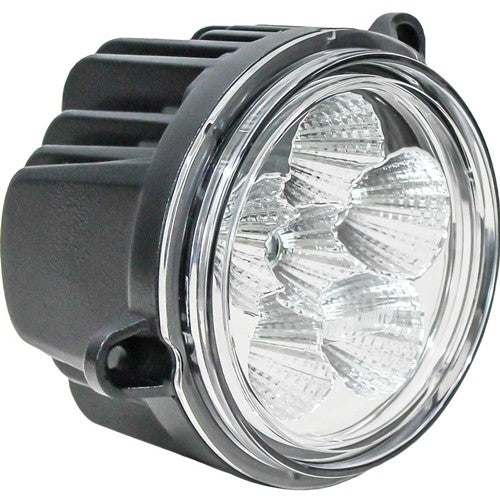

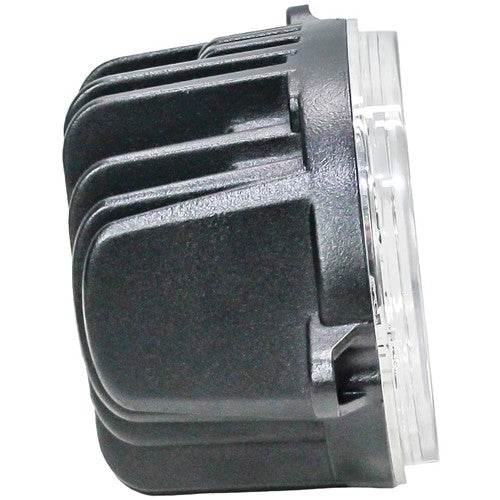

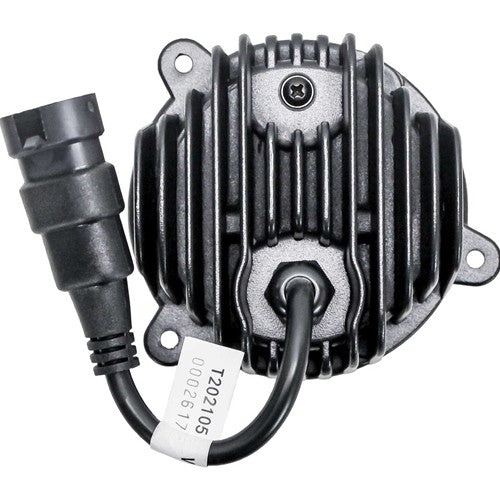

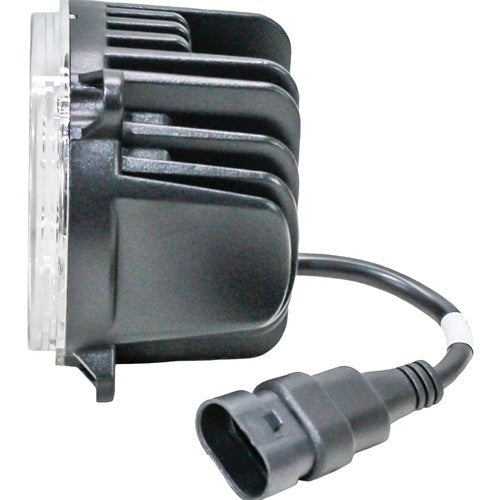

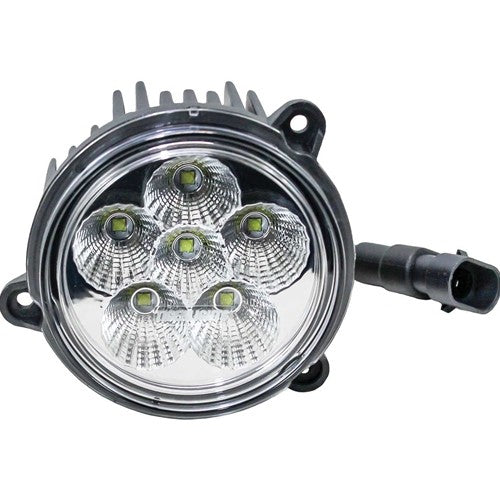

John Deere Aftermarket LED Small Inner Hood Light Insert (LH/RH) For 6M-9RX Series Tractors/Sprayers

Complete Plug And Play Replacement LED Light For The Left-Hand or Right-Hand Small Inner Hood Light Insert On John Deere® 6M, 6R, 7R, 8R, 8RT, 9R, 9RT and 9RX Series Tractors and Sprayers.

**This Light Does Not Replace The Whole Housing. This Light Does Not Replace The Smallest Most Centered Inner Adjustable Lights On R Series Tractors.**

*Please Verify All Measurements And Model Numbers (The WHOLE Model Number). In Some Cases, Particular Machines Have Multiple Options. It Is Up To You To Decide For Sure If This Item Fits Your Machine. If You Need Help, Please Call Or Email Us.*

Save Yourself Time And Money With LED Lights That Are IP68 Rated So That No Dust Will Get In Your Light And Your Light Can Be Fully And Continuously Submerged In Water, But There Will Be No Side Effects. These Lights Have Filters That Will Eliminate Unwanted Radio And Electromagnetic Frequencies From External Sources. Their Die-Cast Aluminum Housing/Heatsink Gives Them Long-Lasting Durability For A High Quality And Long Service Life. Aluminum Housing Is Specifically Designed To Dissipate Heat Away From The Internal Electronics, Which Increases Light Output And Improves Performance. This Light Is Designed To Handle Any Severe Environmental Condition.

This LED Light Features A Durable Polycarbonate Lens, It Is Built To Be RoHs Compliant, And Comes With Stainless Steel Hardware. The Color Of Light LEDs Emit Is Near The Color Spectrum Of The Mid-Day Sun And Allows The Human Eye To Function And View Objects Better To Improve Your Work Environment.

Features:

Tiger Lights TL8630 Light
3.49" x 3.49" x 2.47" (W x H x D)
Flood beam pattern
2,200 effective lumens
5 LEDs
20 watts
1.5 amp draw
Input voltage: 12-Volt to 24-Volt
Plug and play wiring for easy install
Use original mounting bracket

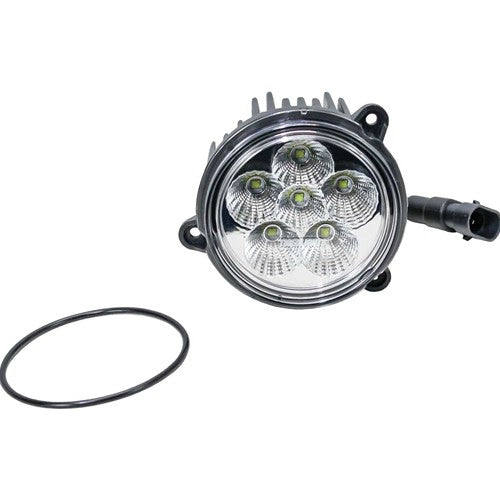

Includes rubber insert

Replaces The Left-hand Or Right-Hand Smaller Round Reflector In The Inner Hood Light.

Manufacturer's Limited Lifetime Warranty

Fits John Deere® 6M, 6R, 7R, 8R, 8RT, 9R, 9RT and 9RX Series Tractors and Sprayers:

6M Series: 6105M, 6110M, 6115M, 6120M, 6125M, 6130M, 6135M, 6140M, 6145M, 6150M, 6155M, 6170M, 6175M, 6195M
6R Series: 6105R, 6110R, 6115R, 6120R, 6125R, 6130R, 6135R, 6140R, 6145R, 6150R, 6155R, 6155RH, 6170R, 6175R, 6190R, 6195R, 6210R, 6215R, 6230R, 6250R
7R Series: 7200R, 7210R, 7215R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R, 7R 210, 7R 230, 7R 250, 7R 270, 7R 290, 7R 310, 7R 330, 7R 350
8R Series: 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8310R, 8320R, 8335R, 8345R, 8360R, 8370R, 8400R
8RT Series: 8310RT, 8320RT, 8335RT, 8345RT, 8360RT, 8370RT
9R Series: 9360R, 9370R, 9410R, 9420R, 9460R, 9470R, 9510R, 9520R, 9560R, 9570R, 9620R
9RT Series: 9460RT, 9470RT, 9510RT, 9520RT, 9560RT, 9570RT
9RX Series: 9420RX, 9470RX, 9520RX, 9570RX, 9620RX
Sprayers: R4023, R4030, R4038, R4040I, R4044, R4045, R4050I, R4060, R4140I, R4150I, 4940

Replaces John Deere® Part Numbers: AL206153, AL206154, RE288376, RE288377, RE296513, RE296514, RE296679, RE296680

John Deere 6M-9RX Series Tractor/Sprayer Replacement LED Small Inner Hood Light Insert (LH/RH)
