International Harvester Aftermarket Seat & Mechanical Suspension For 86-88 Series Tractors

*Please Verify All Measurements And Model Numbers (The WHOLE Model Number). In Some Cases, Particular Machines Have Multiple Options. It Is Up To You To Decide For Sure If This Item Fits Your Machine. If You Need Help, Please Call Or Email Us.*

Features:

Assembly is required (seat and suspension do not come attached)
Durable fabric or vinyl covering
Choose between a 12-Volt air or mechanical suspension
Cut and sew vinyl for a more rugged, comfortable cover
Contoured foam cushions to ensure operator comfort
Adjustable backrest folds forward and reclines
Adjustable backrest extension for extra backrest height
Adjustable fold-up armrests (30° up or down)
Durable document pouch stores owner's manual and other valuables
Adjustable seat height within 2.36" with 3-position adjustment
110 - 287 lb weight adjustment handlebar
Slide rails provide fore/aft adjustment
Durable rubber suspension cover to keep components free of dust and dirt

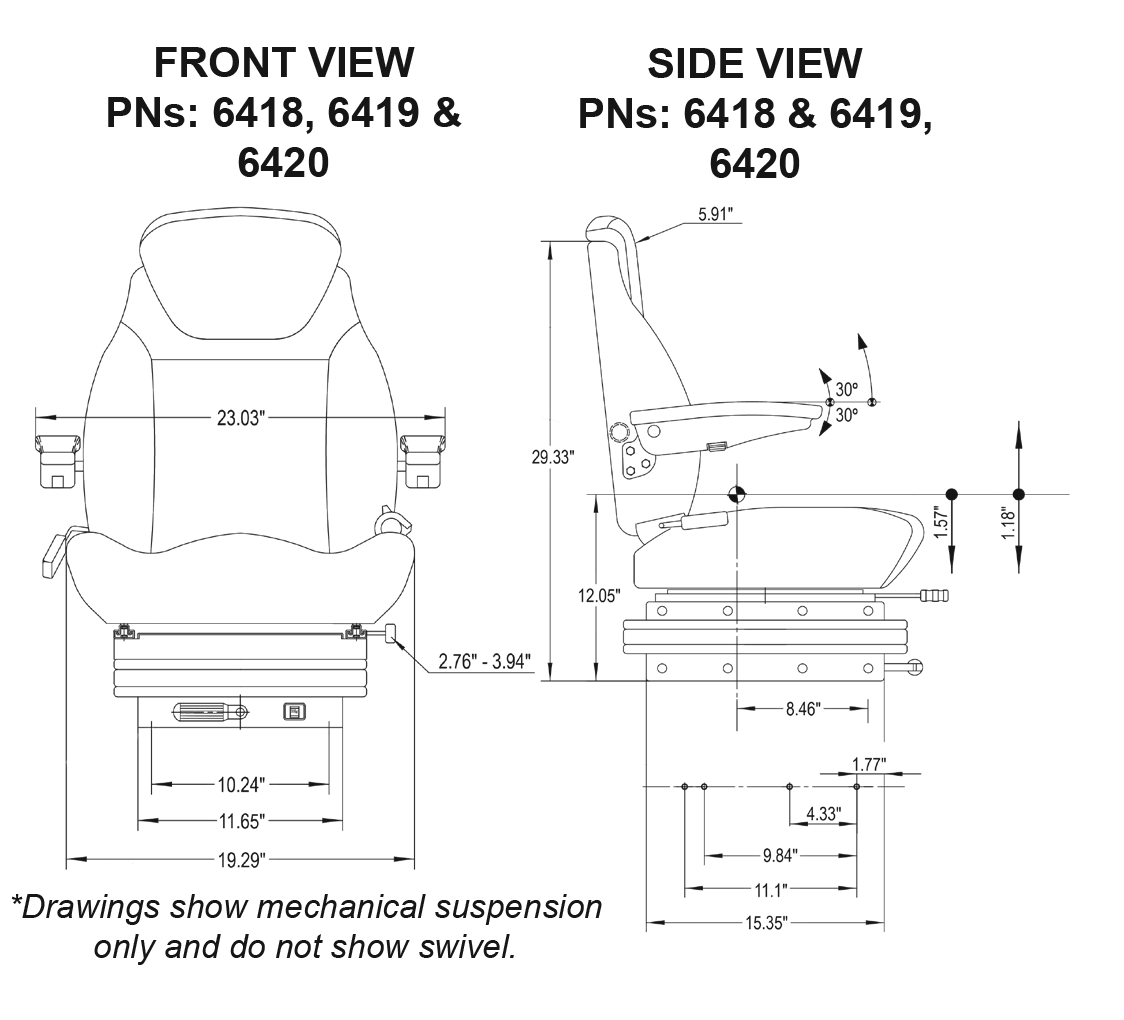

Seat dimensions: 23.6" x 27.8" x 15.4" (W x H x D)

Seat & Suspension Kit (PN: 6418) Includes:

Seat & Air Suspension
Pedestal
Swivel
Install Hardware
Installation Instructions

Seat & Suspension Kits (PNs: 6419 & 6420) Include:

Seat & Mechanical Suspension
Pedestal
Swivel
Install Hardware
Installation Instructions

Available Color & Suspension Options:

Air Seat & Suspension in Black Fabric (PN: 6418)
Mechanical Seat & Suspension in Black Fabric (PN: 6419)
Mechanical Seat & Suspension in Black Vinyl (PN: 6420)

Available Maintenance Items:

Replacement Headrest Adjusters (PN: 8686)

Fits International Harvester® 86-88 Series Tractors:

86 Series: 786, 886, 986, 1086, 1486, 1586, Hydro 186
88 Series: 3288, 3488, 3688, 5088, 5288, 5488
30 2+2 Series: 3388, 3588, 3788

International Harvester 86-88 Series Tractor Replacement Seat & Mechanical Suspension - Fits Various Models - Black Cloth
