Caterpillar 2409538 Hydraulic Cylinder Seal Kit

*This Is A Special Order Seal Kit And May Take Up To 7 Days To Ship, Please Plan Accordingly*

*Please Verify Kit Before Ordering*

*Please Verify All Measurements And Model Numbers (The WHOLE Model Number). It Is Up To You To Decide For Sure If This Item Fits Your Machine. If You Need Help, Please Call Or Email Us.*

Use OEM With Cylinder Numbers: 1007844, 1103786, 1121765, 1166857, 1166858, 1166861, 1117951, 1234121, 1262492, 1375107, 1397547, 1526485, 1699529, 1699530, 1699531, 2280320, 6E0288, 6E1864, 6E5024, 6E5219, 9T2995, 9T7900, 9T8252, 9T9273

Press In Wiper
Rod Seal: U-Seal & Buffer
Piston Seal: Piston Seal

Rod: 2.00"
Bore: 4.00"

Fits Caterpillar® Applications:

Compactor

815B Compactor (Steering- S/N: 17Z1416-Up)

815F Compactor (Steering)

816B Compactor (Steering - S/N: 15Z1270-Up)

816F Compactor (Steering)

Crawler Tractor-Loader

D6M Crawler Tractor-Loader (Dozer Angling - S/N: AKM1-Up, ALH1-Up, ALR1-Up, ALY1-Up, CBF1-Up, CBJ1-Up, CBL1-Up, CCG1-Up, CCK1-Up, CCS1-Up, DJA1-Up, DJY1-Up)

D6N Crawler Tractor-Loader (Angling - S/N: AKM1-Up, ALH1-Up, ALR1-Up, ALY1-Up, CBF1-Up, CBJ1-Up, CBL1-Up, CCG1-Up, CCK1-Up, CCS1-Up, DJA1-Up, DJY1-Up)

Excavator

330C Excavator (Unspecified Application - S/N: JCD1-Up, JNK1-Up)

330C L Excavator (Unspecified Application - S/N: CAP1-Up, JCD1-Up, JNK1-Up)

330C LN Excavator (Unspecified Application - S/N: CAP1-Up)

365C L Excavator (Undercarriage - S/N: MCY1-Up)

385B Excavator (Undercarriage - S/N: FDL1-Up)

385B L Excavator (Undercarriage - S/N: FDL1-Up)

385C Excavator (Undercarriage - S/N: KGB1-Up)

385C L Excavator (Undercarriage - S/N: KGB1-Up, T2E1-Up)

Loader/Backhoe

416B Loader/Backhoe (BH Swing - S/N: 8SG, 8ZK)

416C Loader/Backhoe (BH Swing - S/N: 1WR1-10736, 1XR1-2261, 4ZN1-50156, 5YN1-17074)

416D Loader/Backhoe (BH Swing - S/N: BFP1-2491, BGJ1-522)

420D Loader/Backhoe (BH Swing - S/N: BKC1-Up, BLN1-Up, FDP1-Up)

424D Loader/Backhoe (BH Swing - S/N: BGP1-Up, BKR1-Up)

426 Loader/Backhoe (BH Swing - S/N: 5YJ, 6KL)

426B Loader/Backhoe (BH Swing - S/N: 5YJ, 6KL)

426C Loader/Backhoe (BH Swing - S/N: 6XN1-Up, 7WN1-Up, 1CR1-Up, 1ER1-Up, 1MR1-Up, 1NR1-Up, 1YR1-Up, 1ZR1-Up)

428 Loader/Backhoe (BH Swing - S/N: 7EJ)

428B Loader/Backhoe (BH Swing - S/N: 7EJ)

428C Loader/Backhoe (BH Swing - S/N: 8RN1-Up, 1HR1-Up, 1SR1-Up, 2CR1-Up)

428D Loader/Backhoe (BH Swing - S/N: BNB1-Up, BLL1-Up, BNS1-Up, BMT1-Up)

430D Loader/Backhoe (BH Swing - S/N: BNK1-Up, BML1-Up)

432D Loader/Backhoe (BH Swing - S/N: BLD1-Up)

436 Loader/Backhoe (BH Swing - S/N: 6MJ1-Up, 7FL1-Up)

436B Loader/Backhoe (BH Swing - S/N: 6MJ1-Up, 7FL1-Up)

436C Loader/Backhoe (BH Swing - S/N: 8TN1-Up, 9JN1-Up, 1FR1-Up, 1GR1-Up, 1PR1-Up, 1RR1-Up, 2AR1-Up, 2BR1-Up)

438 Loader/Backhoe (BH Swing - S/N: 3KK1-Up)

438B Loader/Backhoe (BH Swing - S/N: 3KK1-Up)

438C Loader/Backhoe (BH Swing - S/N: 9KN1-Up, 1JR1-Up, 1TR1-Up, 2DR1-Up)

438D Loader/Backhoe (BH Swing - S/N: BPE1-Up, BPN1-Up)

442D Loader/Backhoe (BH Swing - S/N: BRG1-Up, BRY1-Up)

446 Loader/Backhoe (BH Swing - S/N: 5BL1-Up)

446B Loader/Backhoe (BH Swing - S/N: 5BL1-Up)

Motor Grader

12H Motor Grader (Lift/Tilt - S/N: 1251-Up, 2WR1-Up)

Scraper

613C II Scraper (Bowl - S/N: 8LJ1-Up, 92X1-Up, 93X1612-Up, LCZ1-Up, TJK1-Up, Steering - S/N: 92X1798-Up, 93X1-Up, TJK1-Up)

613G Scraper (Bowl - S/N: DBE1-Up, ESB1-Up)

Skidder

515 Skidder (Lift - S/N: 4LR1-Up)

525 Skidder (Lift - S/N: 1DN1-Up)

525B Skidder (Lift - S/N: 1DN1-Up)

527 Skidder (Dozer Angling - S/N: PTR1-Up)

Wheel Loader

R1600 Wheel Loader (Steering - S/N: 9EW1-Up, 9XP1-Up, 9PP1-Up, 9YZ1-Up)

R1600G Wheel Loader (Steering - S/N: 9EW1-Up, 9XP1-Up, 9PP1-Up, 9YZ1-Up)

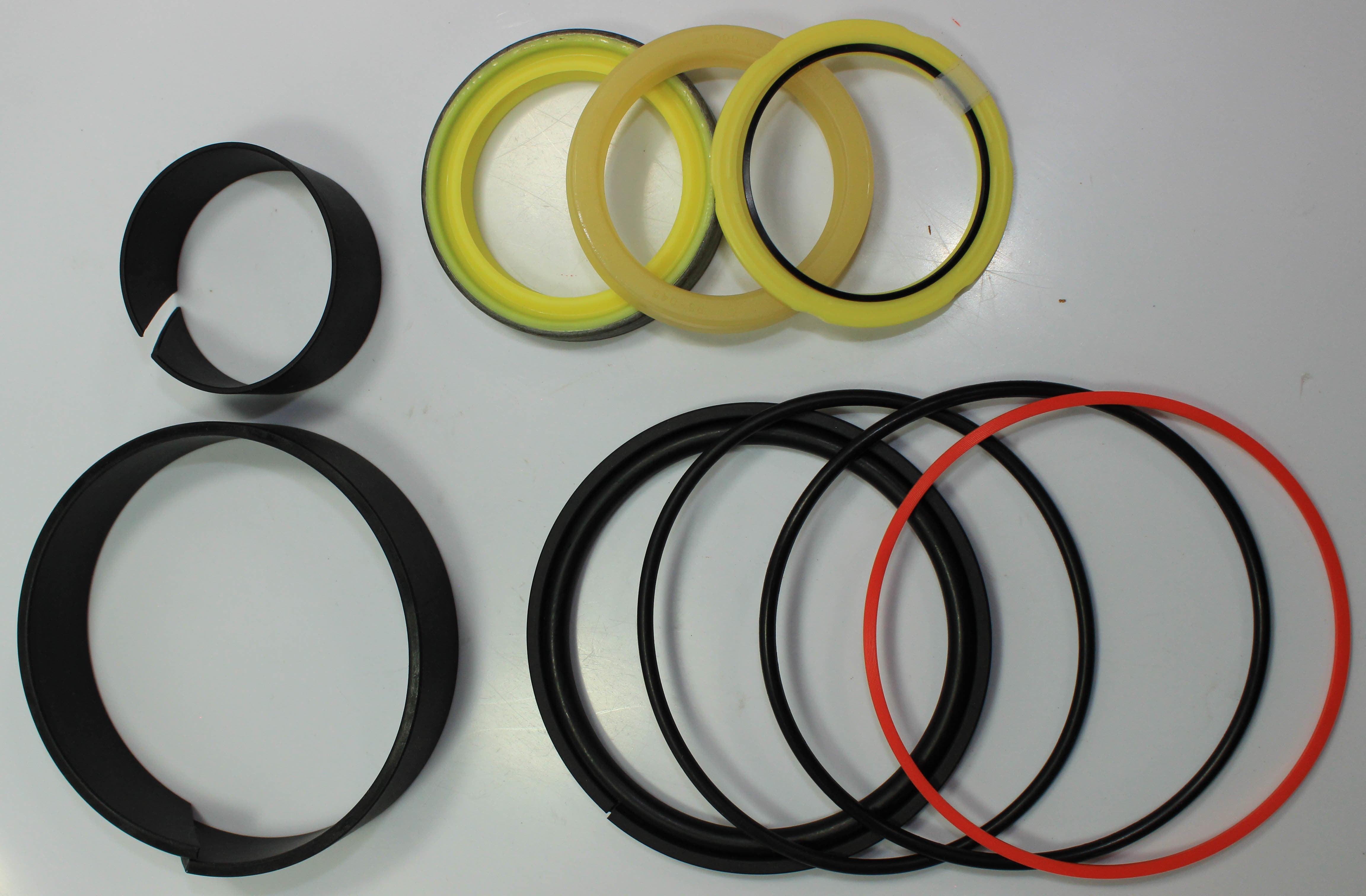

This Item Is A Brand New Aftermarket Hydraulic Cylinder Seal Kit. Matches OEM Kit, All Parts And Seals Are Included.

Caterpillar 2409538 Hydraulic Cylinder Seal Kit
