Case IH Complete Aftermarket LED Light Kit For MX Series Magnum Tractors

Use This Complete Plug And Play Replacement LED Light Kit For All Hood, Front and Rear Upper Cab, Rear Fender And Windshield Lights On Case IH® MX Series Magnum Tractors.

**Light Will Bolt Directly Into Factory Light Housing**

*Please Verify All Measurements And Model Numbers (The WHOLE Model Number). In Some Cases, Particular Machines Have Multiple Options. It Is Up To You To Decide For Sure If This Item Fits Your Machine. If You Need Help, Please Call Or Email Us.*

Save Yourself Time And Money With LED Lights That Are IP68 Rated So That No Dust Will Get In Your Light And Your Light Can Be Fully And Continuously Submerged In Water, But There Will Be No Side Effects. These Lights Have Filters That Will Eliminate Unwanted Radio And Electromagnetic Frequencies From External Sources. Their Die-Cast Aluminum Housing/Heatsink Gives Them Long-Lasting Durability For A High Quality And Long Service Life. Aluminum Housing Is Specifically Designed To Dissipate Heat Away From The Internal Electronics, Which Increases Light Output And Improves Performance. This Light Is Designed To Handle Any Severe Environmental Condition.

This LED Light Features A Durable Polycarbonate Lens, It Is Built To Be RoHs Compliant, And Comes With Stainless Steel Hardware. The Color Of Light LEDs Emit Is Near The Color Spectrum Of The Mid-Day Sun And Allows The Human Eye To Function And View Objects Better To Improve Your Work Environment.

Features:

Tiger Lights CASEKIT8 Light Kit
Flood, flood/spot or amber flashing/flood beam pattern
45,400 effective lumens
354 watts
Input voltage: 12-Volt to 24-Volt
Plug and play wiring for easy install
Use original mount and wiring

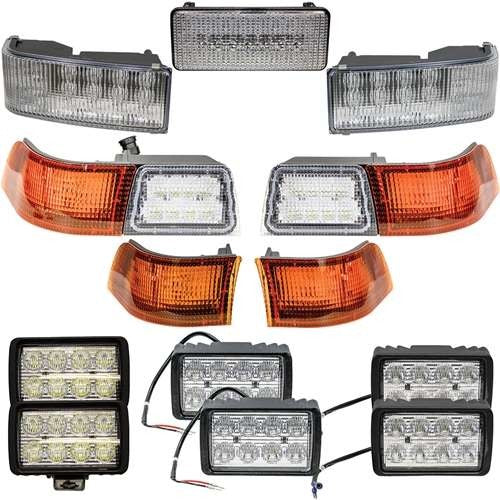

Kit includes: 13 lights (3 front hood, 1 left-hand front upper cab corner, 1 right-hand front upper cab corner, 1 left-hand rear upper cab corner, 1 right-hand rear upper cab corner, 2 rear upper cab, 2 rear fender and 2 windshield lights), connectors, adapters and hardware

Left-Hand Wraparound Hood Light Features (PN: 2790 - TL6110L Light):

1 LED light is 11" x 8" x 4.2" (W x H x D)
Flood/spot combo beam pattern
5,300 effective lumens
21 LEDs
70 watts
5.8 amp draw

Right-Hand Wraparound Hood Light Features (PN: 2791 - TL6110R Light):

1 LED light is 11" x 8" x 4.2" (W x H x D)
Flood/spot combo beam pattern
5,300 effective lumens
21 LEDs
70 watts
5.8 amp draw

Center Hood Light Features (PN: 2924 - TL6010 Light):

1 LED light is 10.5" x 4.25" x 4.5" (W x H x D)
Flood/spot beam pattern
7,200 effective lumens
108 watts
9 amp draw

Left-Hand Front Upper Cab Corner Amber Light with Attached White Work Light Features (PN: 2627 - TL6120L Light):

1 LED light
Amber flashing/flood beam pattern
Amber light watts: 17W + 12W resistor
Amber light: 2.4 amp draw
White light: 3,000 effective lumens
White light: 8 LEDs
White light: 30 watts
White light: 3.3 amp draw
Plug and play wiring for easy install

Right-Hand Front Upper Cab Corner Amber Light with Attached White Work Light Features (PN: 2628 - TL6120R Light):

1 LED light
Amber flashing/flood beam pattern
Amber light watts: 17W + 12W resistor
Amber light: 2.4 amp draw
White light: 3,000 effective lumens
White light: 8 LEDs
White light: 30 watts
White light: 3.3 amp draw
Plug and play wiring for easy install

Left-Hand Rear Upper Cab Corner Amber Light Features (PN: 2625 - TL6130L Light):

1 LED light
Amber flashing/flood beam pattern
Watts: 17W + 12W resistor
2.4 amp draw
Plug and play wiring for easy install

Right-Hand Rear Upper Cab Corner Amber Light Features (PN: 2626 - TL6130R Light):

1 LED light
Amber flashing/flood beam pattern
Watts: 17W + 12W resistor
2.4 amp draw
Plug and play wiring for easy install

Rear Upper Cab Light Features (PN: 3106 - TL3030 Light):

2 LED lights are 6" x 3.5" x 3" (W x H x D)
Flood beam pattern
3,600 effective lumens
8 LEDs
40 watts
3.33 amp draw
Bottom mount
Plug and play wiring for easy install

Rear Fender Light Features (PN: 2775 - TL3085 Light):

2 LED lights are 6" x 3.5" x 3" (W x H x D)
Flood beam pattern
3,600 effective lumens
8 LEDs
40 watts
3.33 amp draw
Comes with a hollow bolt to easily run the wire to hide under the fender
Plug and play wiring for easy install

Windshield Light Features (PN: 2762 - TL3075 Light):

2 LED lights are 6" x 3.5" x 3" (W x H x D)
Flood beam pattern
3,600 effective lumens
8 LEDs
40 watts
3.3 amp draw
Side mount bracket
Installation may require wire splicing into original wiring

Replaces All Hood, Front And Rear Upper Cab, Rear Fender And Windshield Lights (3 Front Hood, 1 Left-Hand Front Upper Cab Corner, 1 Right-Hand Front Upper Cab Corner, 1 Left-Hand Rear Upper Cab Corner, 1 Right-Hand Rear Upper Cab Corner, 2 Rear Upper Cab, 2 Rear Fender And 2 Windshield Lights).

Manufacturer's Limited Lifetime Warranty

Available Options:

LED Left-Hand Red/White Rear Tail Light (PN: 2551) - Need To Purchase 1 Light For MX180, MX200, MX220, MX240 Or MX270 Tractor
LED Right-Hand Red/White Rear Tail Light (PN: 2552) - Need To Purchase 1 Light For MX180, MX200, MX220, MX240 Or MX270 Tractor
LED Left-Hand Amber Cab Corner/Red Tail Light (PN: 2555) - Need To Purchase 1 Light For MX210, MX230, MX255 Or MX285 Tractor
LED Right-Hand Amber Cab Corner/Red Tail Light (PN: 2554) - Need To Purchase 1 Light For MX210, MX230, MX255 Or MX285 Tractor

Fits Case IH® MX Series Magnum Tractors: MX180, MX200, MX210, MX220, MX230, MX240, MX255, MX270, MX285

Case IH MX Series Magnum Tractor Complete Replacement LED Light Kit
