Case IH Magnum-MX-Steiger Series Aftermarket LED Front Hood Light Kit

Complete Plug And Play Replacement LED Light Kit For All Front Hood Lights On Case IH® Magnum, MX Series Maxxum, Steiger (Rowtrac) And Steiger (Quadtrac) Series Tractors And Patriot Series Sprayers.

*Please Verify All Measurements And Model Numbers (The WHOLE Model Number). In Some Cases, Particular Machines Have Multiple Options. It Is Up To You To Decide For Sure If This Item Fits Your Machine. If You Need Help, Please Call Or Email Us.*

Save Yourself Time And Money With LED Lights That Are IP68 Rated So That No Dust Will Get In Your Light And Your Light Can Be Fully And Continuously Submerged In Water, But There Will Be No Side Effects. These Lights Have Filters That Will Eliminate Unwanted Radio And Electromagnetic Frequencies From External Sources. Their Die-Cast Aluminum Housing/Heatsink Gives Them Long-Lasting Durability For A High Quality And Long Service Life. Aluminum Housing Is Specifically Designed To Dissipate Heat Away From The Internal Electronics, Which Increases Light Output And Improves Performance. This Light Is Designed To Handle Any Severe Environmental Condition.

This LED Light Features A Durable Polycarbonate Lens, It Is Built To Be RoHs Compliant, And Comes With Stainless Steel Hardware. The Color Of Light LEDs Emit Is Near The Color Spectrum Of The Mid-Day Sun And Allows The Human Eye To Function And View Objects Better To Improve Your Work Environment.

Features:

Tiger Lights CASEKIT11 Light Kit
Driving or flood/spot beam pattern
17,400 effective lumens
210 watts
17.5 amp draw
Input voltage: 12-Volt to 24-Volt
Plug and play wiring for easy install

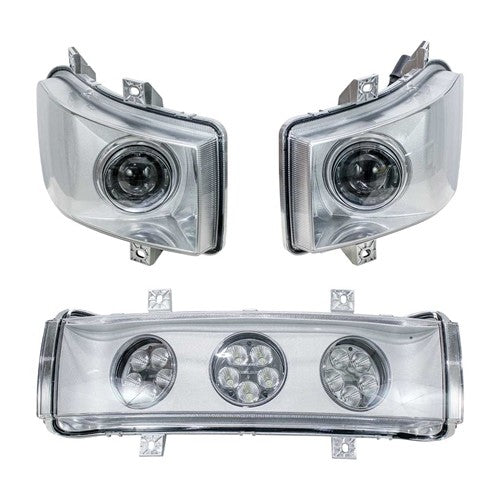

Kit includes: 3 lights (1 left-hand wraparound hood, 1 right-hand wraparound hood and 1 center hood lights) with housing

Left-Hand Wraparound Hood Light Features (PN: 2641 - TL6160L Light):

1 LED light is 14.87" x 9.94" x 7.21" (W x H x D)
Driving beam pattern
1,200 effective lumens
30 watts
2.5 amp draw
Features a DOT and E-Marked light pattern, specifically designed for road travel

Right-Hand Wraparound Hood Light Features (PN: 2642 - TL6160R Light):

1 LED light is 14.87" x 9.94" x 7.21" (W x H x D)
Driving beam pattern
1,200 effective lumens
30 watts
2.5 amp draw
Features a DOT and E-Marked light pattern, specifically designed for road travel

Center Hood Light Features (PN: 2640 - TL6150 Light):

1 LED light is 20.75" x 8.6" x 6.9" (W x H x D)
Flood/spot beam pattern
15,000 effective lumens
15 LEDs
150 watts
15 amp draw
Replaces current OEM lights and housing
Includes 3 LED lights with connectors attached to aluminum housing

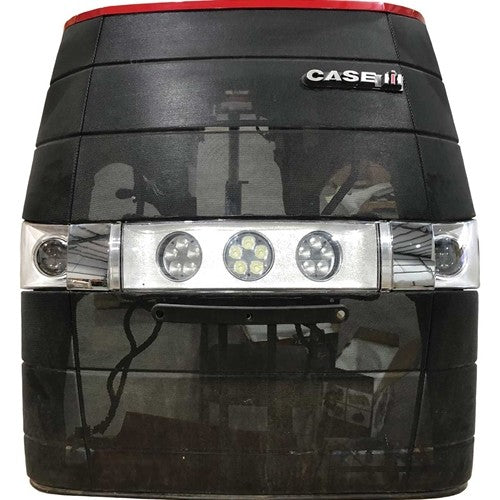

Replaces All Front Hood Lights (1 Left-Hand Wraparound Hood, 1 Right-Hand Wraparound Hood And 1 Center Hood Lights).

Manufacturer's Limited Lifetime Warranty

Fits Case IH® Magnum, MX Series Maxxum, Steiger (Rowtrac) and Steiger (Quadtrac) Series Tractors, and Patriot Series Sprayers:

Magnum Series: Magnum 180, Magnum 190, Magnum 200, Magnum 210, Magnum 215, Magnum 220, Magnum 225, Magnum 235, Magnum 240, Magnum 245, Magnum 250, Magnum 260, Magnum 275, Magnum 280, Magnum 290, Magnum 305, Magnum 310, Magnum 315, Magnum 335, Magnum 340, Magnum 370, Magnum 380

MX Series Maxxum: MX215, MX245, MX275, MX305
Steiger (Rowtrac) Series: Steiger 350, Steiger 370, Steiger 400, Steiger 420, Steiger 420 Rowtrac
Steiger (Quadtrac) Series: Steiger 370 Quadtrac, Steiger 400 Quadtrac, Steiger 420 Quadtrac

Patriot Series Sprayers: 2250, 3240, 3340

Case IH Magnum-MX-Steiger Series Replacement LED Front Hood Light Kit
