Case Aftermarket Seat & Mechanical Suspension For 870-2870 Sears Series Tractors

*Please Verify All Measurements And Model Numbers (The WHOLE Model Number). In Some Cases, Particular Machines Have Multiple Options. It Is Up To You To Decide For Sure If This Item Fits Your Machine. If You Need Help, Please Call Or Email Us.*

Features:

Assembly is required (seat and suspension do not come attached)
Durable fabric or vinyl covering
Choose between a 12-Volt air or mechanical suspension
Cut and sew vinyl for a more rugged, comfortable cover
Contoured foam cushions to ensure operator comfort
Adjustable backrest folds forward and reclines
Adjustable backrest extension for extra backrest height
Adjustable fold-up armrests (30° up or down)
Durable document pouch stores owner's manual and other valuables
Adjustable seat height within 2.36" with 3-position adjustment
110 - 287 lb weight adjustment handlebar
Slide rails provide fore/aft adjustment
Durable rubber suspension cover to keep components free of dust and dirt
Seat dimensions: 23.6" x 27.8" x 15.4" (W x H x D)

Seat & Suspension Kit (PN: 6412) Includes:

Seat & Air Suspension
Swivel
Install Hardware
Installation Instructions

Seat & Suspension Kit (PN: 6413) Includes:

Seat & Mechanical Suspension
Swivel
Install Hardware
Installation Instructions

Available Color & Suspension Options:

Available Maintenance Items:

Replacement Headrest Adjusters (PN: 8686)

Fits Case® 870-2870 Series Tractors with Original Sears Seat: 870, 970, 1070, 1170, 1270, 1370, 1570, 2470, 2670, 2870

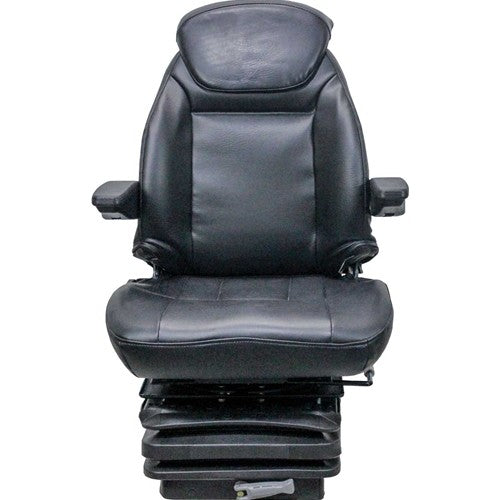

Case 870-2870 Sears Series Tractor Replacement Seat & Mechanical Suspension - Fits Various Models - Black Vinyl
