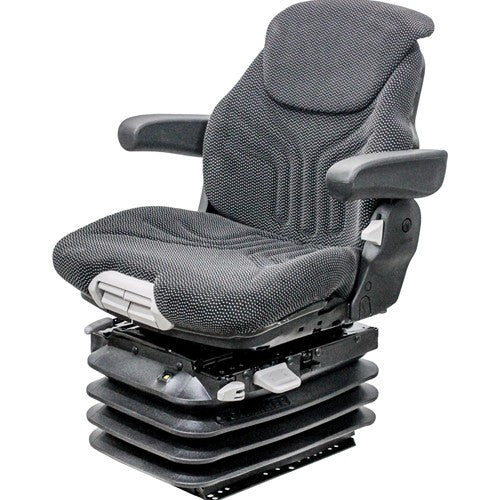

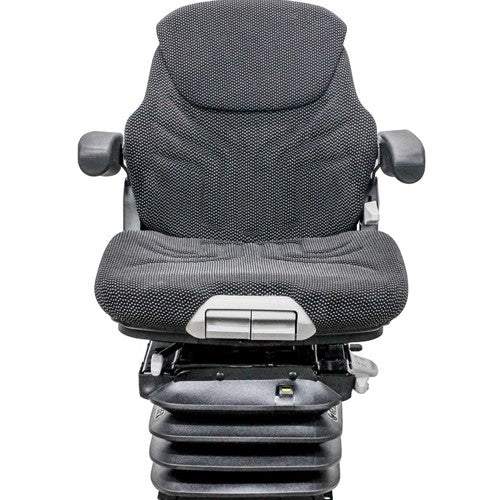

Allis Chalmers Aftermarket Seat & Air Suspension For 7000 Series Tractors

*Swivel Not Included. If A Swivel Is Wanted, Please Order PN: 5007*

*Please Verify All Measurements And Model Numbers (The WHOLE Model Number). In Some Cases, Particular Machines Have Multiple Options. It Is Up To You To Decide For Sure If This Item Fits Your Machine. If You Need Help, Please Call Or Email Us.*

Features:

Assembly is required (seat and suspension do not come attached)
Durable Black/Gray Matrix Fabric covering
Contoured foam cushions for maximum operator comfort
Tapered back support with adjustable backrest for added comfort and versatility
Backrest extension for extra backrest height
Seat cushion depth/tilt and angle adjustment for custom fit
Adjustable mechanical lumbar support with multiple setting to help prevent lower back pain
Fold-up armrests allow for easy access to the seat
Accepts operator presence switch
Slide rails provide fore/aft adjustment ensuring operator comfort
Self-contained 12-Volt air compressor with 4" suspension travel
Side controls
Fore/aft isolator
Suspension stroke up to 7"
Manual weight adjustment
110 - 285 lb weight adjustment with weight indicator
Height adjustment of 3"
Shock absorber adjustments for individual comfort

Seat & Suspension Kit (PN: 6968) Includes:

Grammer 731 Seat Top
Grammer MSG95 Air Suspension
Pedestal
Install Hardware
Installation Instructions

Available Options:

Swivel Kit (PN: 5007)
Lumbar Support Kit (PN: 8455)
Retractable Seat Belt Kit (PN: 7996)
Operator Presence Switch Kit (PN: 7961)
Grammer Seat/Backrest Cover Kit in Alcanta Two-Tone Gray Fabric (PN: 8065)
Grammer Backrest Extension Cover Kit in Alcanta Two-Tone Gray Fabric (PN: 8066)
MSG85/95 Lateral Isolator Kit* (PN: 8400)

*The MSG85/95 Lateral Isolator Kit Will Only Work If A Grammer 700 Series Seat Top Is Being Used.

Available Maintenance Items (Only Fit This Seat Assembly, Not OEM):

Replacement Fold-Up Armrest: Left-Hand (PN: 8538)
Replacement Fold-Up Armrest: Right-Hand (PN: 8539)
Replacement Fold-Up & Adjustable Armrest: Left-Hand (PN: 7966)
Replacement Fold-Up & Adjustable Armrest: Right-Hand (PN: 7967)
Replacement Backrest Extension Kit in Black/Gray Matrix Fabric (PN: 8365)
Replacement Backrest Extension Install Kit (PN: 8573)
Replacement Backrest Cushion in Black/Gray Matrix Fabric (PN: 7995)
Replacement Seat Cushion in Black/Gray Matrix Fabric (PN: 8251)
Replacement MSG85/95 Seat Belt Cover Kit (PN: 8372)
Replacement Seat Depth/Tilt Kit (PN: 8594)
Replacement Slide Rail Kit (PN: 6048)
Replacement 12-Volt Air Compressor Kit (PN: 7993)
Replacement Airbag Kit (PN: 8020)
Replacement MSG95 Fore/Aft Isolator Kit (PN: 8210)
Replacement MSG95 Fore/Aft Isolator Lock Kit (PN: 8513)
Replacement MSG95 Shock Kit (PN: 8294)
Replacement Suspension Switch (PN: 8023)
Replacement Swing Arm Kit (PN: 8131)

Fits Allis Chalmers® 7000 Series Tractors: 6060, 6080, 7000, 7010, 7020, 7030, 7040, 7045, 7050, 7060, 7080

Allis Chalmers 7000 Series Tractor Seat & Air Suspension - Fits Various Models - Black/Gray Cloth
