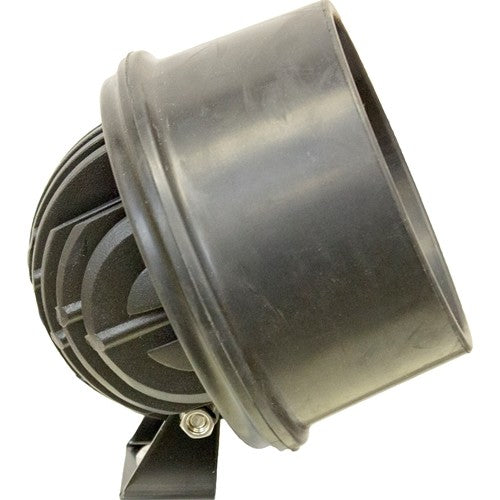

AC/Case/Cat/Ford/IH/JD/MF Aftermarket LED Cab/Fender/Hood Light (Bottom Mount)

Use This Replacement LED Light For The Left-Hand Or Right-Hand Upper Cab, Rear And/Or Front Fender Or Hood Light On Allis Chalmers® 6000-7000 Series Tractors, Case® 90 Series Tractors, Ford® Tractors, International Harvester® 06-88 Series Tractors, John Deere® 2020-9000 Series Tractors, Or Combines, And Massey Fergsuon® Tractors. Also Use This LED Light In Case®, Caterpillar® and John Deere® Industrial Equipment.

*Please Verify All Measurements And Model Numbers (The WHOLE Model Number). In Some Cases, Particular Machines Have Multiple Options. It Is Up To You To Decide For Sure If This Item Fits Your Machine. If You Need Help, Please Call Or Email Us.*

Save Yourself Time And Money With LED Lights That Are IP68 Rated So That No Dust Will Get In Your Light And Your Light Can Be Fully And Continuously Submerged In Water, But There Will Be No Side Effects. These Lights Have Filters That Will Eliminate Unwanted Radio And Electromagnetic Frequencies From External Sources. Their Die-Cast Aluminum Housing/Heatsink Gives Them Long-Lasting Durability For A High Quality And Long Service Life. Aluminum Housing Is Specifically Designed To Dissipate Heat Away From The Internal Electronics, Which Increases Light Output And Improves Performance. This Light Is Designed To Handle Any Severe Environmental Condition.

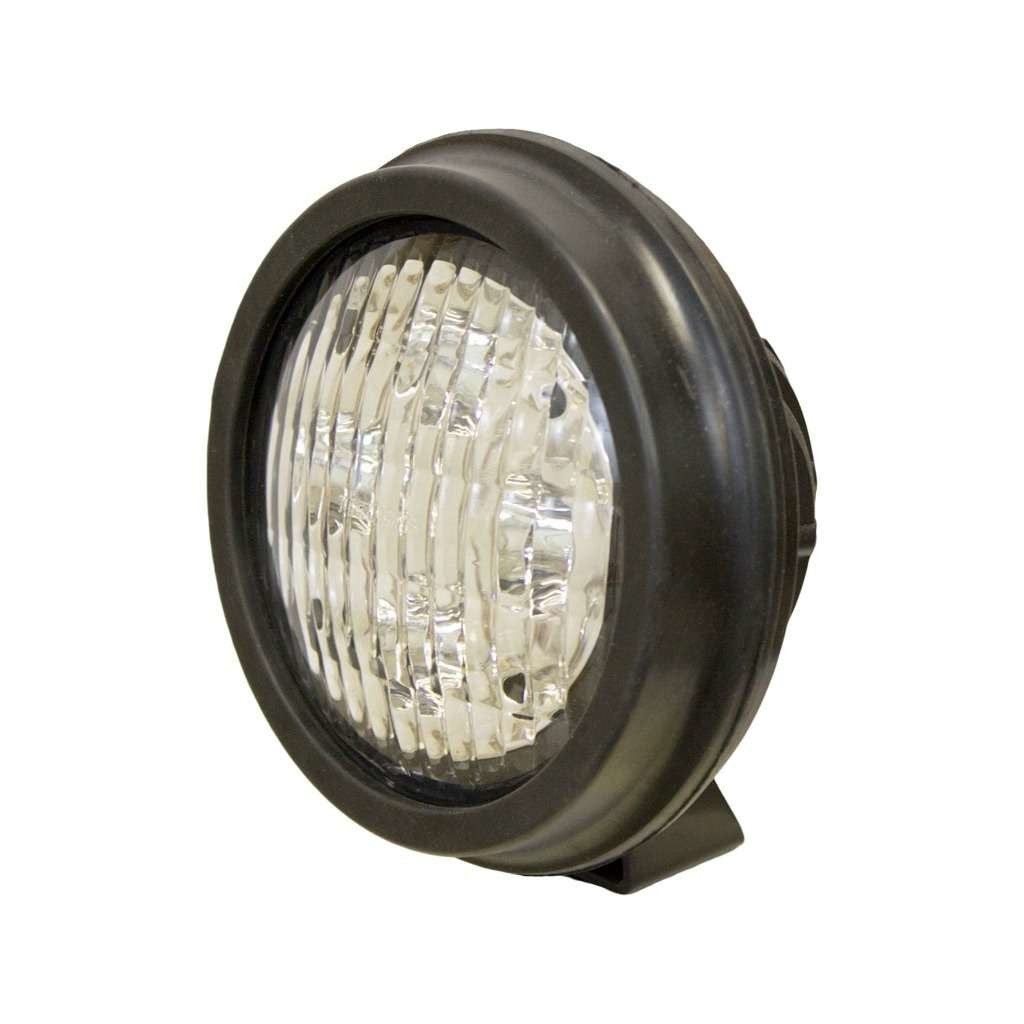

This LED Light Features A Durable Polycarbonate Lens, It Is Built To Be RoHs Compliant, And Comes With Stainless Steel Hardware. The Color Of Light LEDs Emit Is Near The Color Spectrum Of The Mid-Day Sun And Allows The Human Eye To Function And View Objects Better To Improve Your Work Environment.

Features:

Tiger Lights TL2080 Light
4.5" diameter x 3.5" depth
Trapezoid beam pattern
2,800 effective lumens

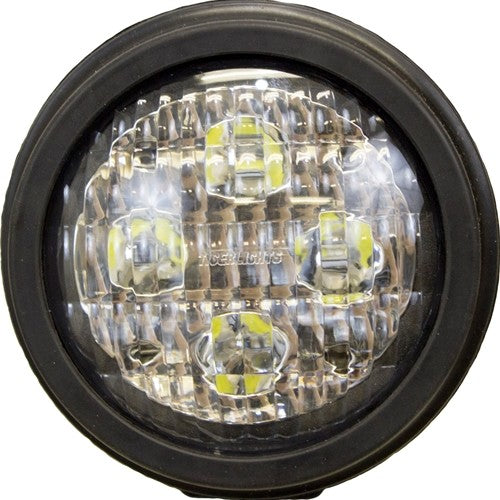

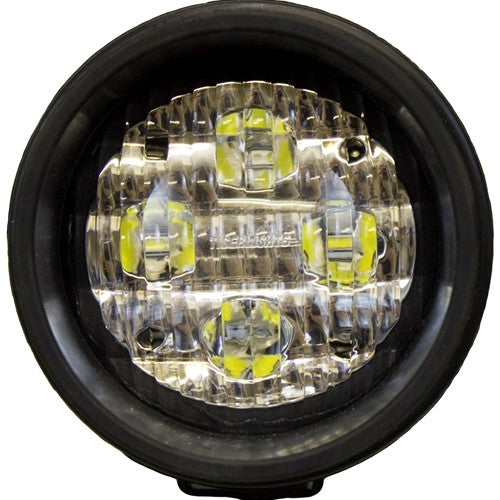

4 LEDs
40 watts
3.3 amp draw

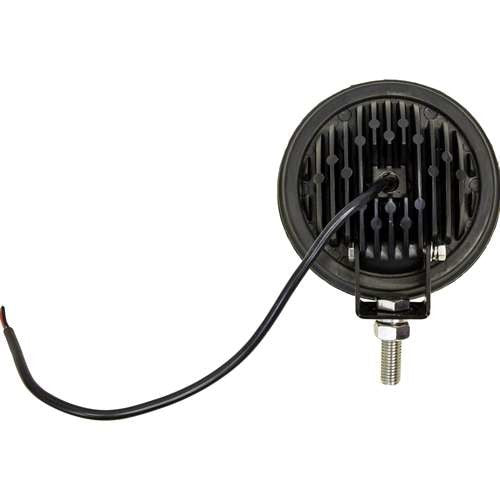

Installation requires wire splicing
Bottom mount

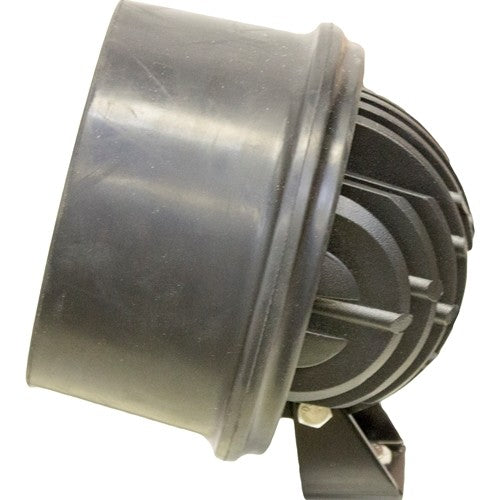

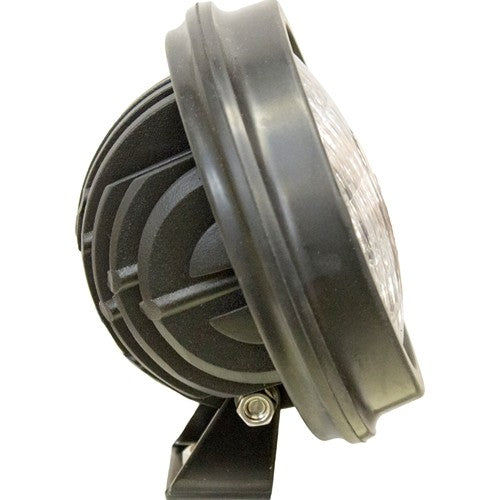

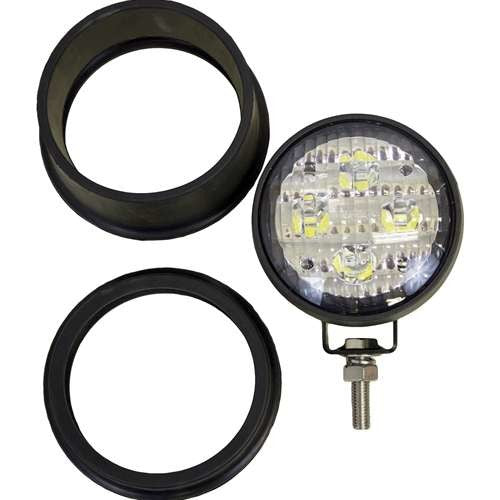

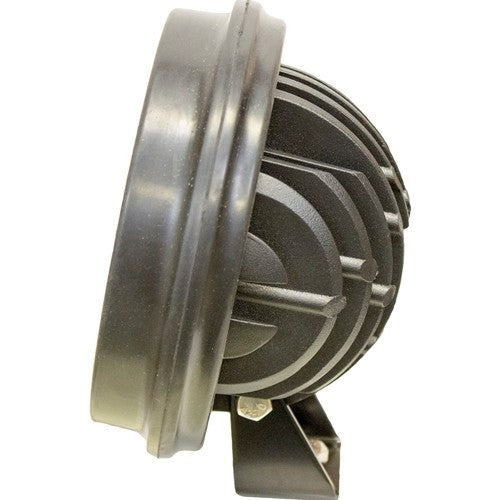

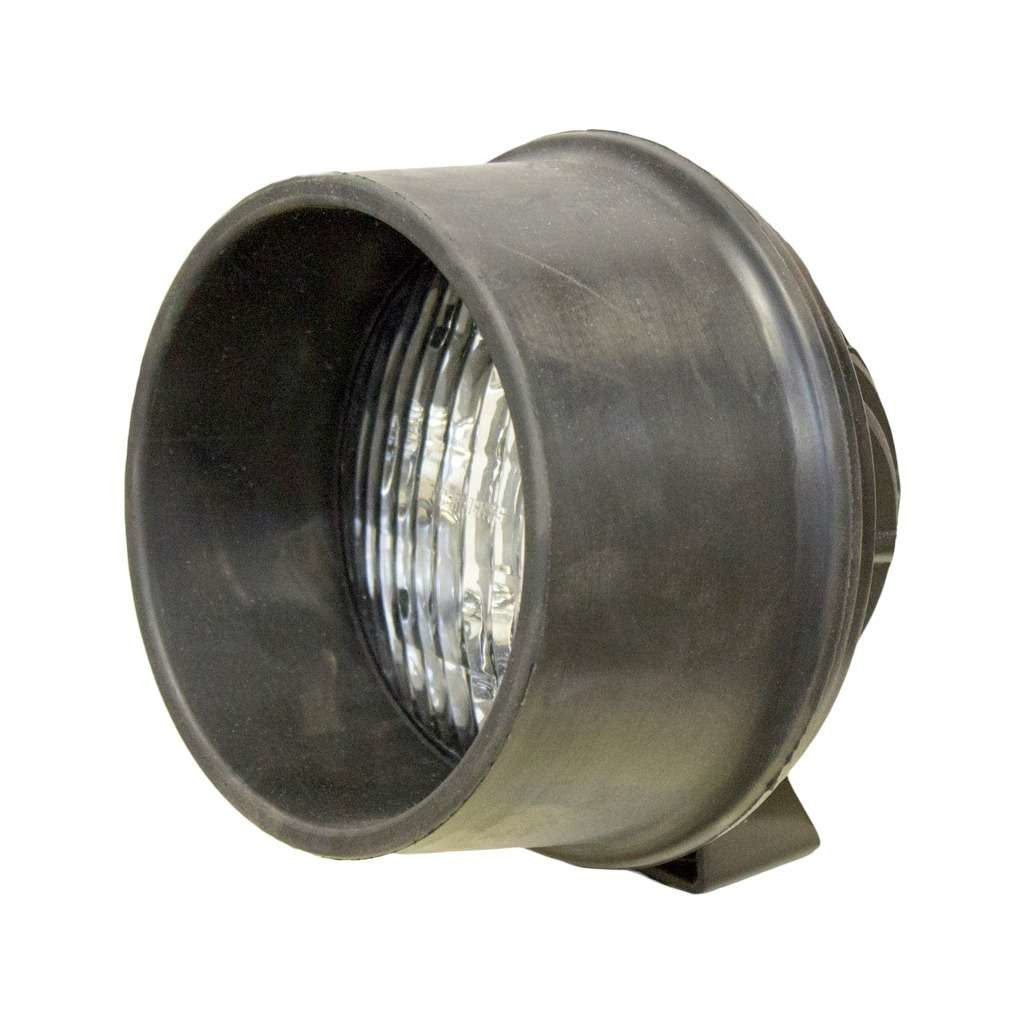

Includes two rubber bezels - long and short versions
Input voltage: 12-Volt to 24-Volt
Includes mounting bracket and hardware

Manufacturer's Limited Lifetime Warranty

Replaces Left-Hand or Right-Hand Fender Light on Allis Chalmers® 6000-7000 Series Tractors:

Tractors: 160, 170, 175, 180, 185, 190, 200, 210, 6040, 7000, 7010, 7020, 7040, 7045, 7060, 7080
6000 Series: 6060, 6070, 6080
7000 Series: 7030, 7050

Replaces Allis Chalmers® Part Number: 70269614

Replaces Left-Hand or Right-Hand Light Located on Upper Cab or Rear and/or Front Fender on Case® 90 Series Tractors:

Tractor: 320B, 420B, 420DB
90 Series: 1190, 1290, 1390, 1490, 1690, 2090, 2290, 2390, 2590, 4490, 4690, 4890

Replaces Case® Part Number: A145495

Replaces Left-Hand or Right-Hand Side Work or Fender Light on International Harvester® 06-88 Series Tractors:

Tractors: 544, 656, 666, 686
06 Series: 706, 806, 1206
26 Series: 826, 1026
56 Series: 756, 856, 1256, 1456
66 Series: 766, 966, 1066, 1466, 1468, 1566, 1568
86 Series: 786, 886, 986, 1086, 1486, 1586
88 Series: 3088, 3288, 3488, 3688, 5088, 5288, 5488
30 2+2 Series: 3388, 3588, 3788

Replaces International Harvester® Part Number: 131368C92

Replaces Left-Hand or Right-Hand Fender or Hood Light on Ford® Tractors:

Tractors: 233, 333, 2000, 2100, 2110, 2120, 2150, 2300, 2310, 2600, 2600N, 2600R, 2600V, 3000, 3055, 3100, 3110, 3120, 3150, 3300, 3310, 3330, 3400, 3500, 3550, 3600, 3600N, 3600NO, 3600R, 3600V, 3900, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4600NO, 4600O, 4600SU, 5000, 5100, 5200, 5340, 5600, 5700, 6600, 6600C, 6600O, 6700, 6710, 7000, 7100, 7200, 7600, 7600C, 7700, 7710, 7910, 8000, 8210, 8600, 8700, 9000, 9600, 9700
TW Series: TW5, TW10, TW15, TW20, TW25, TW30, TW35

Replaces Left-Hand or Right-Hand Light Located on Upper Cab, Rear and/or Front Fender (Stairs & Tank) or Front Hood on John Deere® Tractors, Combines, Cotton Pickers and Sprayers:

Tractors: 302, 820, 830, 920, 930, 1120, 1520, 1640, 1830, 2010, 2040S, 2120, 2130, 3130, 3030
Generation II Series: 1530, 2030, 2630
New Generation Series: 1010, 1020, 2020
Standard-Tread Tractors: 5010, 5020, 6030
Utility Tractors: 3055, 3150, 3155, 3255
10 Series: 2510, 3010, 4000, 4010
20 Series: 2520, 3020, 3120, 4020, 4320, 4520, 4620
30 Series: 4030, 4230, 4430, 4630
40 Series: 4040, 4240, 4440, 4640, 4840
50 Series: 4050, 4250, 4450, 4650, 4850
55 Series: 4055, 4255, 4455, 4555, 4755, 4955
60 Series: 4560, 4760, 4960
30 4WD Series: 8430, 8630
40 4WD Series: 8440, 8640
50 4WD Series: 8450, 8650, 8850
60 4WD Series: 8560, 8760, 8960
70 4WD Series: 8570, 8770, 8870, 8970
1030 Series: 1030, 1130, 1630
2040 Series: 2040, 2140, 2240, 2440, 2640, 2840, 2940
2050 Series: 2150, 2350, 2550, 2750, 2950
2055 Series: 2155, 2255, 2355, 2355N, 2555, 2755, 2855N, 2955
3040 Series: 3040, 3140
5000 Series: 5200, 5300, 5400, 5500
7020 Series: 7020, 7520
9000 Series: 9100, 9200, 9300, 9400
Combines: 3300, 4400, 4420, 6600, 6602, 6620, 6622, 7700, 7720, 7721, 8820
Cotton Pickers: 9900, 9910, 9920, 9930, 9940, 9950
Sprayers: 6100, 6500, 6600, 6700

Replaces John Deere® Part Numbers: RE19079, AR85260

Replaces Left-Hand or Right-Hand Front or Rear Cab, Rear Fender or Hood Light on Massey Ferguson® Tractors: 10, 20, 30, 31, 40, 50, 60, 70, 80, 135, 150, 165, 175, 180, 230, 240, 245, 250, 255, 270, 275, 285, 290, 298, 1080, 1085, 1100, 1105, 1130, 1135, 1150, 1155, 1500, 1505, 1800, 1805, 2640, 2675, 2705, 2745, 2775, 2805, 3505, 3525, 3545

Replaces Front or Rear Upper Cab or Fender Light on Case®, Caterpillar® and John Deere® Industrial Equipment:

Case® Backhoe Loaders, Crawler Dozers and Forklifts:

Backhoe Loaders: 26, 26B, 33, 34, 265, 480B, 480C, 480D, 480E, 480E LL, 480F, 480LL, 580C, 580D, 580 SD, 580 SE, 680E, 680G, 680H, 780, 780B, 780C
Crawler Dozers: 310C, 310D, 420, 420B, 420C, 450B, 455B, 850B, 850C, 850D, 855C, 855D, 1150B, 1150C, 1150D, 1150E, 1155D, 1155E, 1450, 1450B, 1455B, 1550
Forklifts: 530, 584C, 584D, 585C, 585D, 586C, 586D
Wheel Loaders: W8E, W9, W9E, W10E

Caterpillar® Cold Planer, Compactor, Off Highway Trucks and Wheel Loaders:

Cold Planer: PR-1000
Compactor: 815B
Off Highway Trucks: 776C, 776D, 777C, 777D, 784B, 784C, 785B, 785C, 785D, 789B, 789C, 793B, 793C, 793D, 797, 797B, MT4400D AC
Wheel Loaders: 950H, 966H, 972G, 972H, 972K, 972M, 980F, 980G, 980G Series II, 980H, 980K, IT12F

John Deere® Backhoe Loaders, Crawler Dozers, Crawler Loaders, Forklifts, Log Skidders, Skid Steers, Skidder and Wheel Loaders:

Backhoe Loaders: 300B, 301A, 302A, 310, 310A, 310B, 320B. 401B, 401C, 410, 410B, 415B, 420B, 420DB, 480B, 500A, 500B, 500C, 510, 510B, 515B, 610B, 700A, 710B, 710C
Crawler Dozers: 450D, 450E, 550, 550A, 550B
Crawler Loaders: 455D, 455E, 555, 555A, 555B
Forklifts: 380, 480, 480A, 480B, 480C
Log Skidders: 340D, 440, 440A, 440B, 440C, 440D, 448D, 540, 540A, 540B, 540D, 548D, 640, 740A
Scraper: 760A
Skid Steers: 14, 24, 24A, 70, 125, 170, 375, 570, 575, 675, 675B, 3375
Skidder: 740
Wheel Loaders: 444, 444C, 444CH, 544, 544A, 544B, 544C, 644A, 644B, 644C

Replaces Case® Part Numbers: A11280, D71409, D70115, 373662R1, 373662R91

Replaces Caterpillar® Part Numbers: 7T-1371, 7G-9319, 6N-7987

Replaces John Deere® Part Numbers: AF3892R, AT25451
